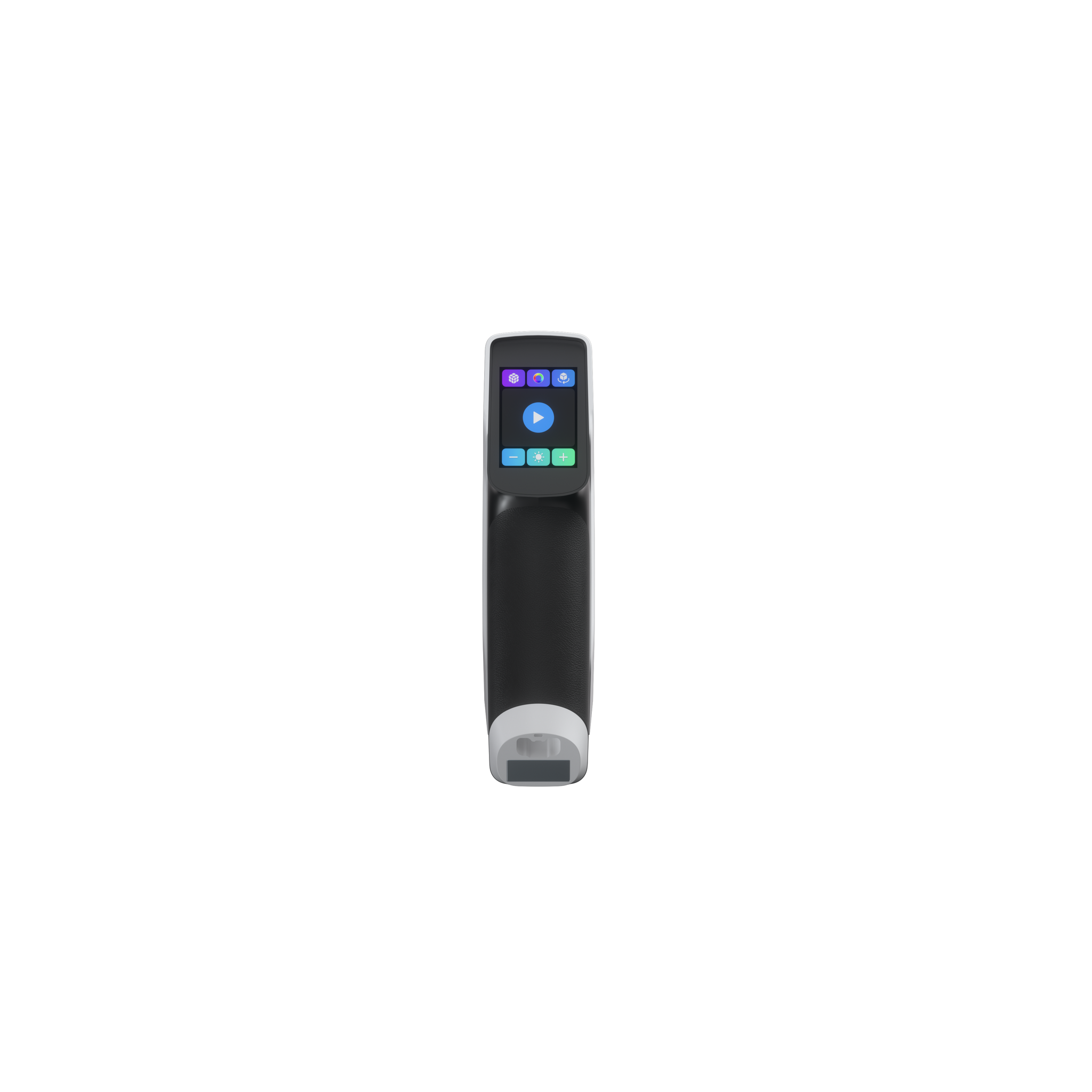

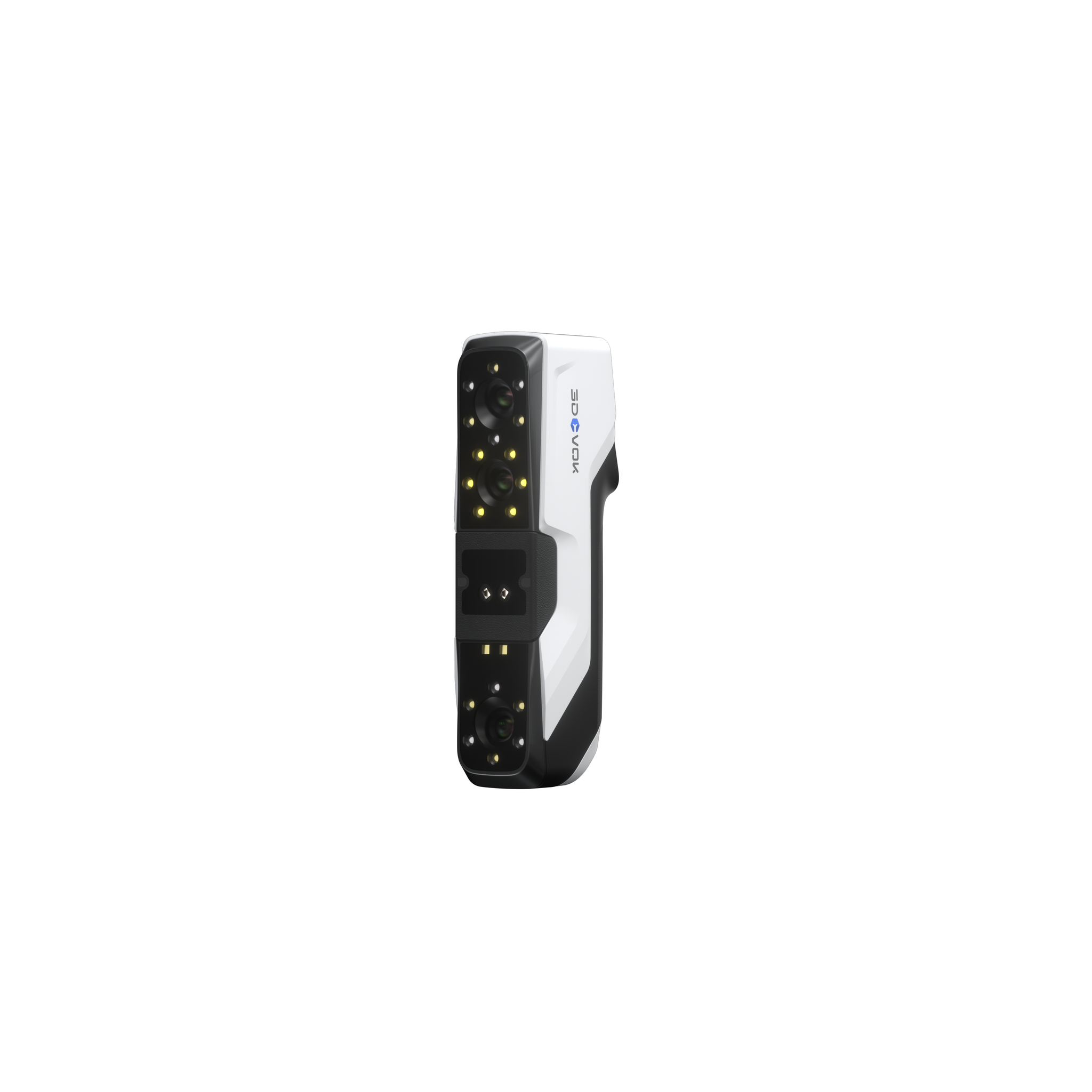

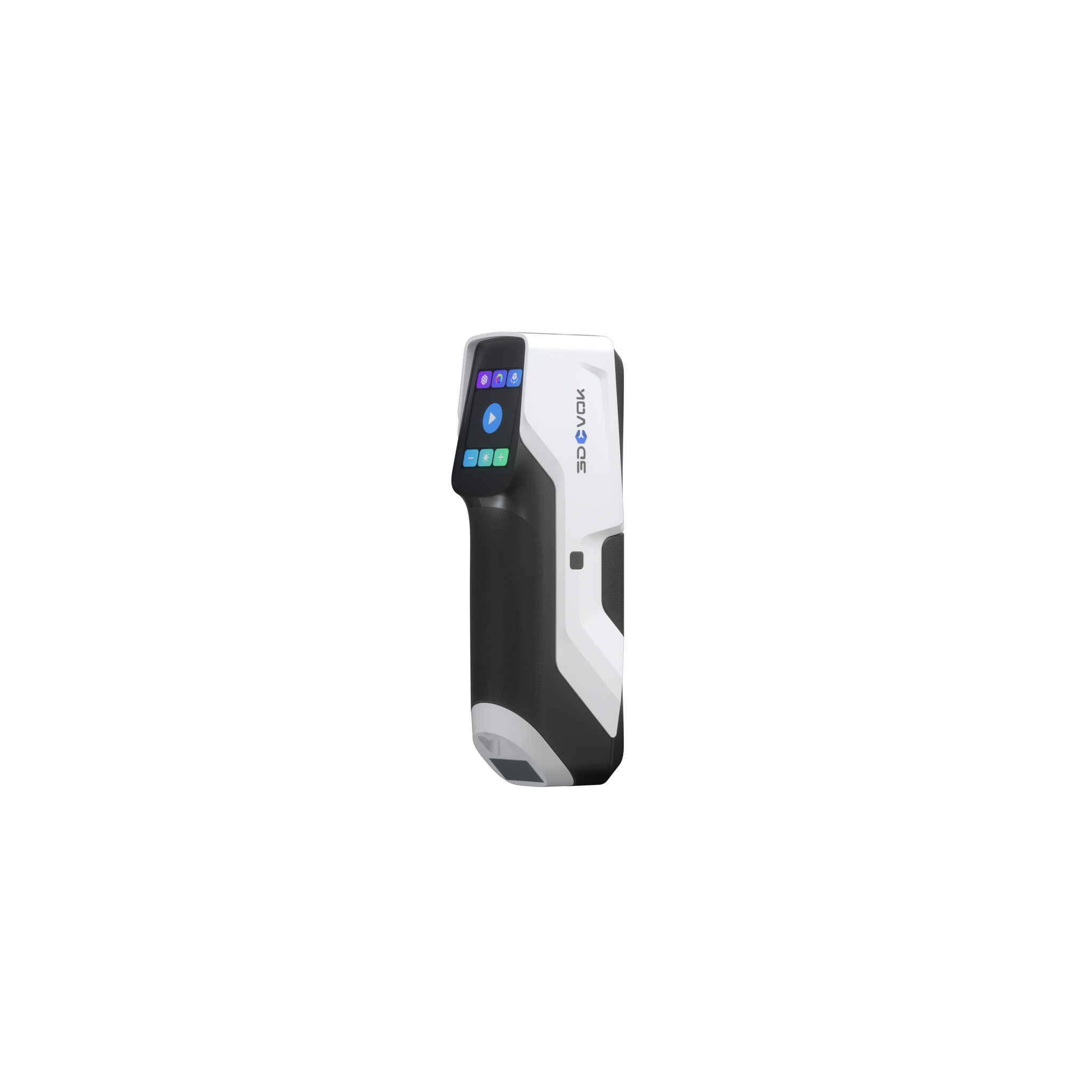

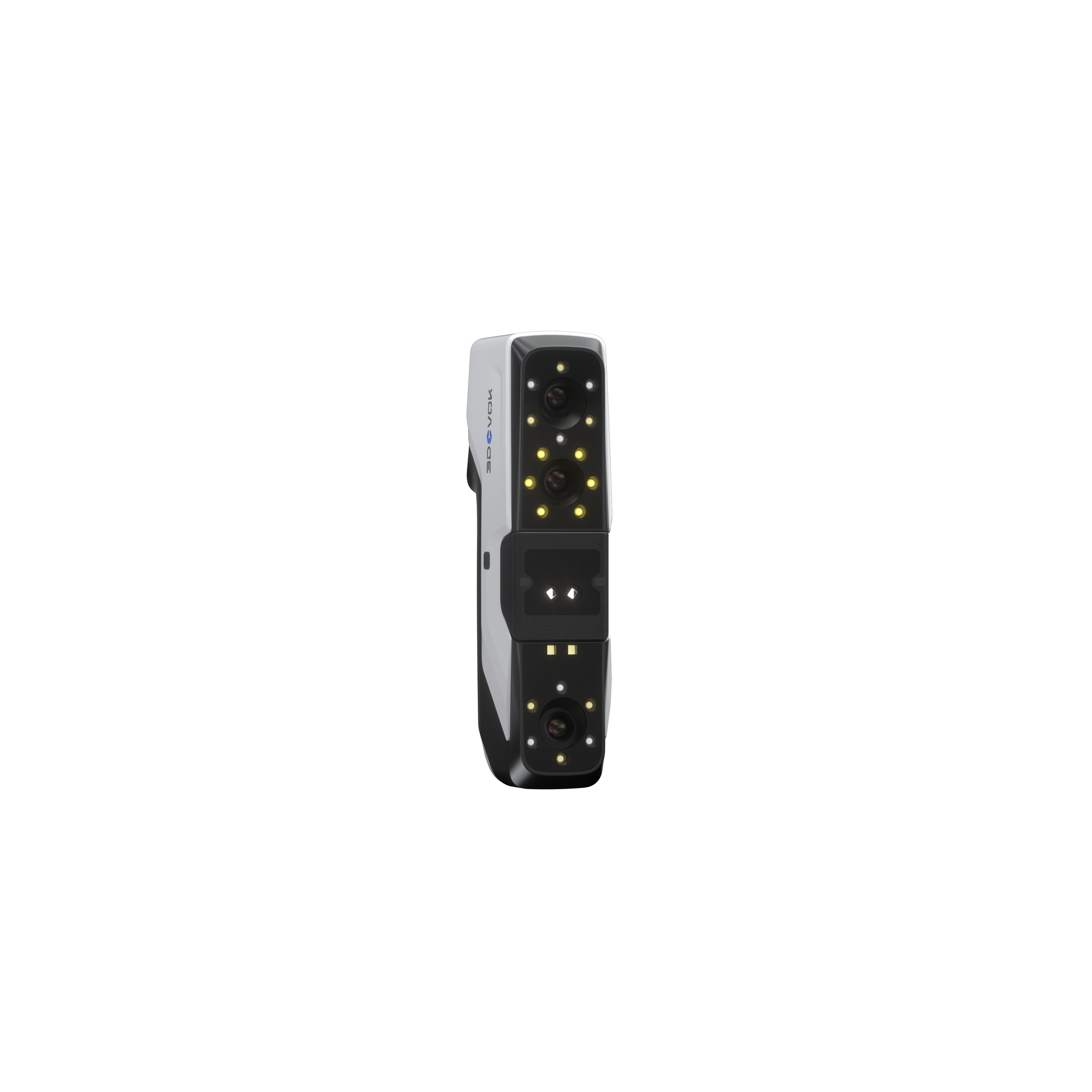

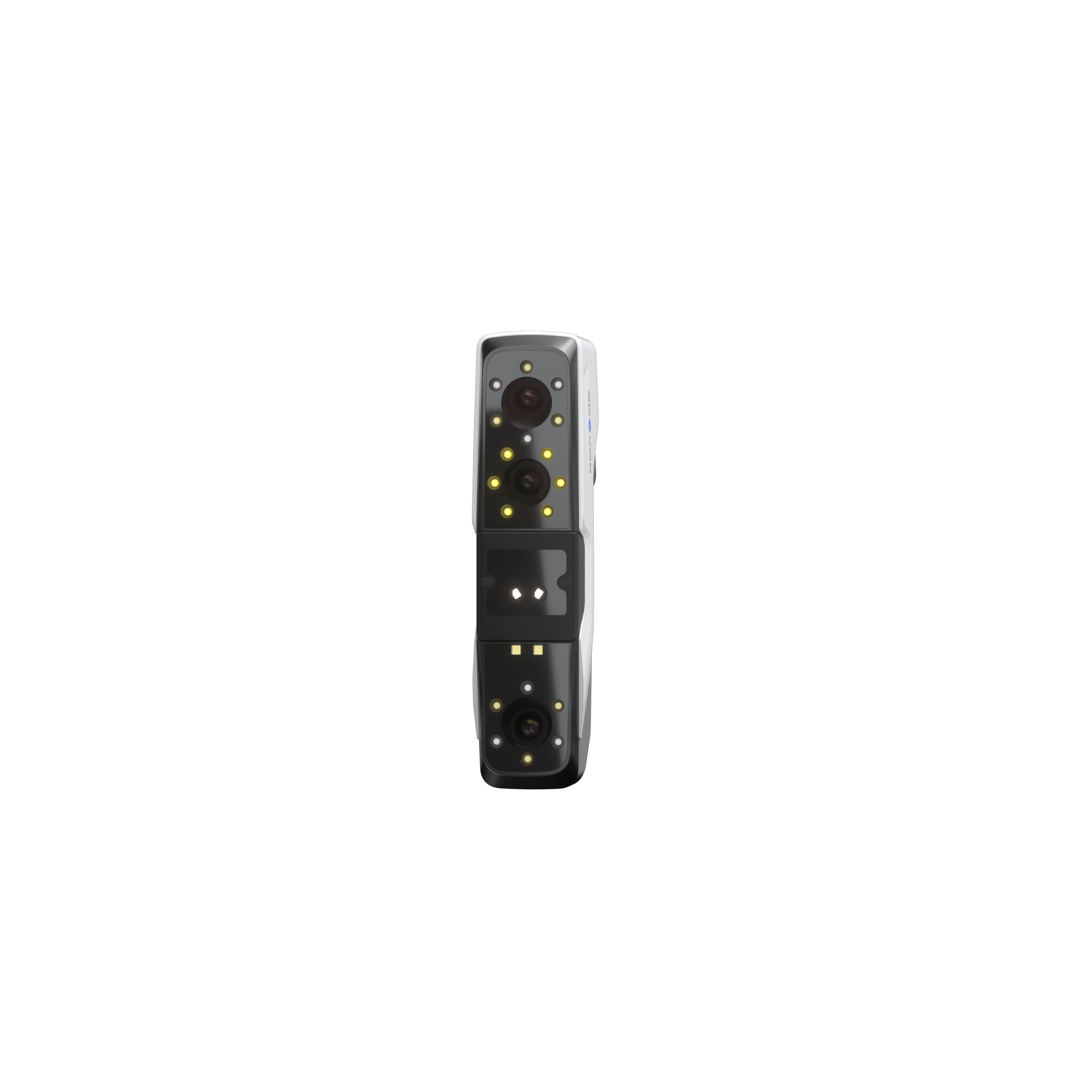

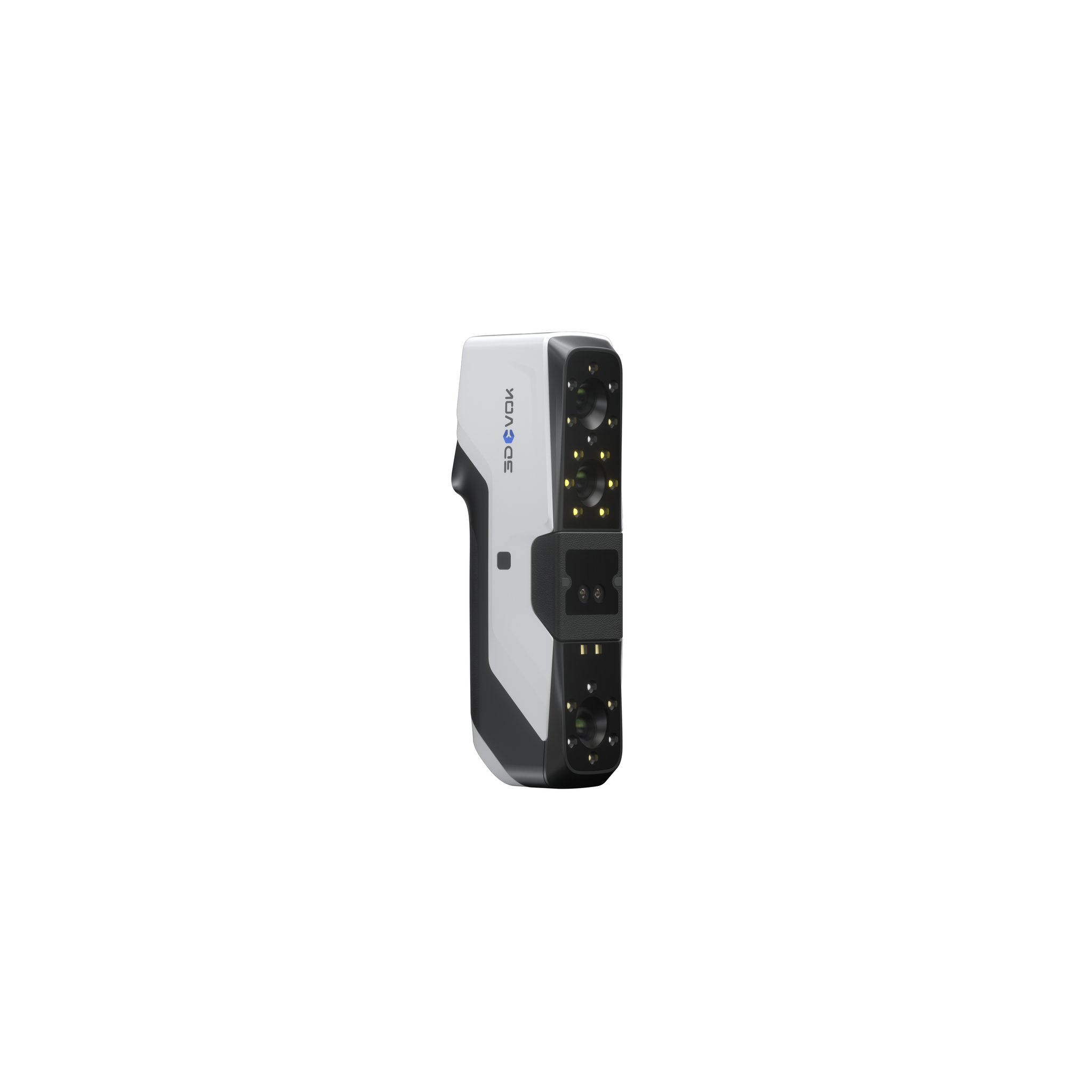

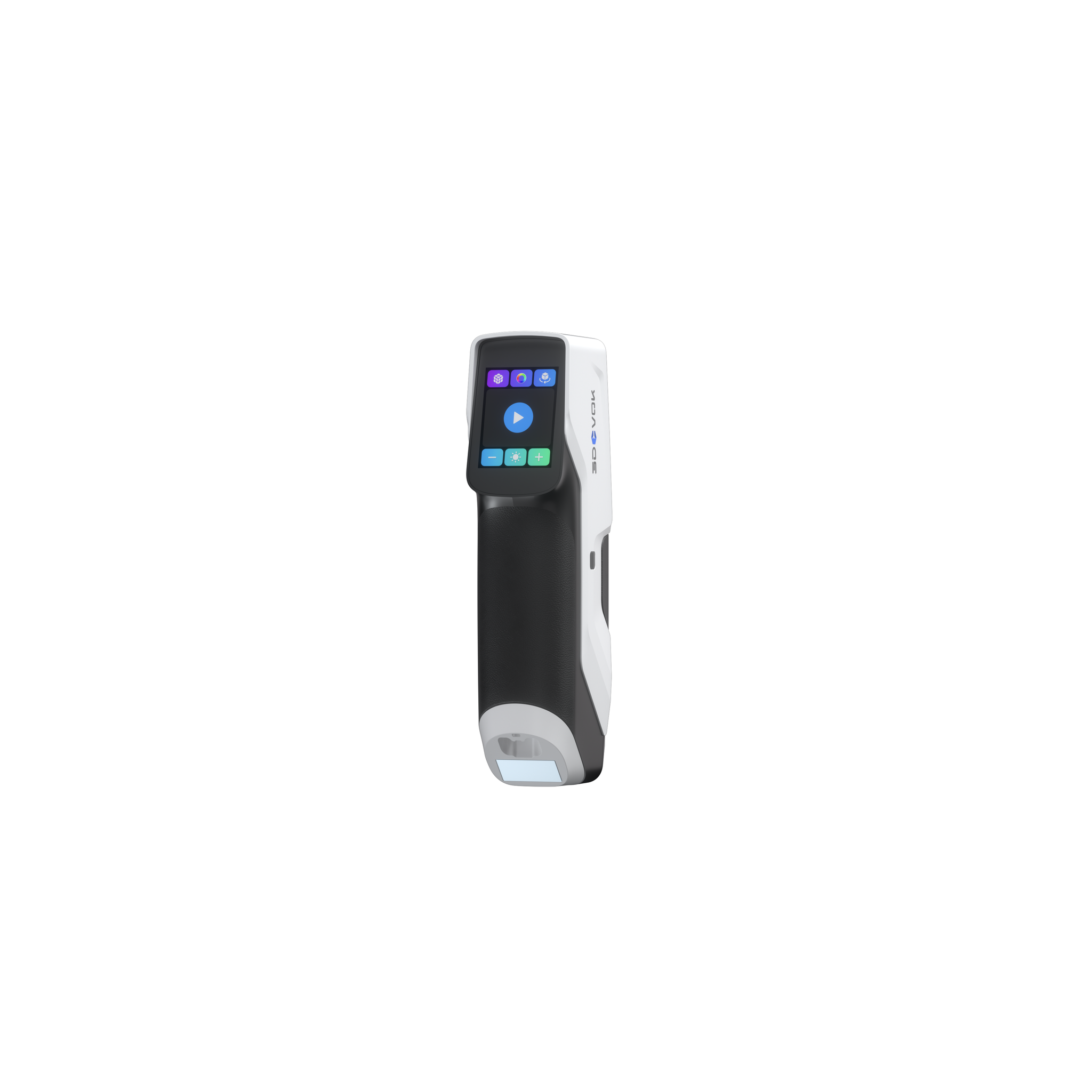

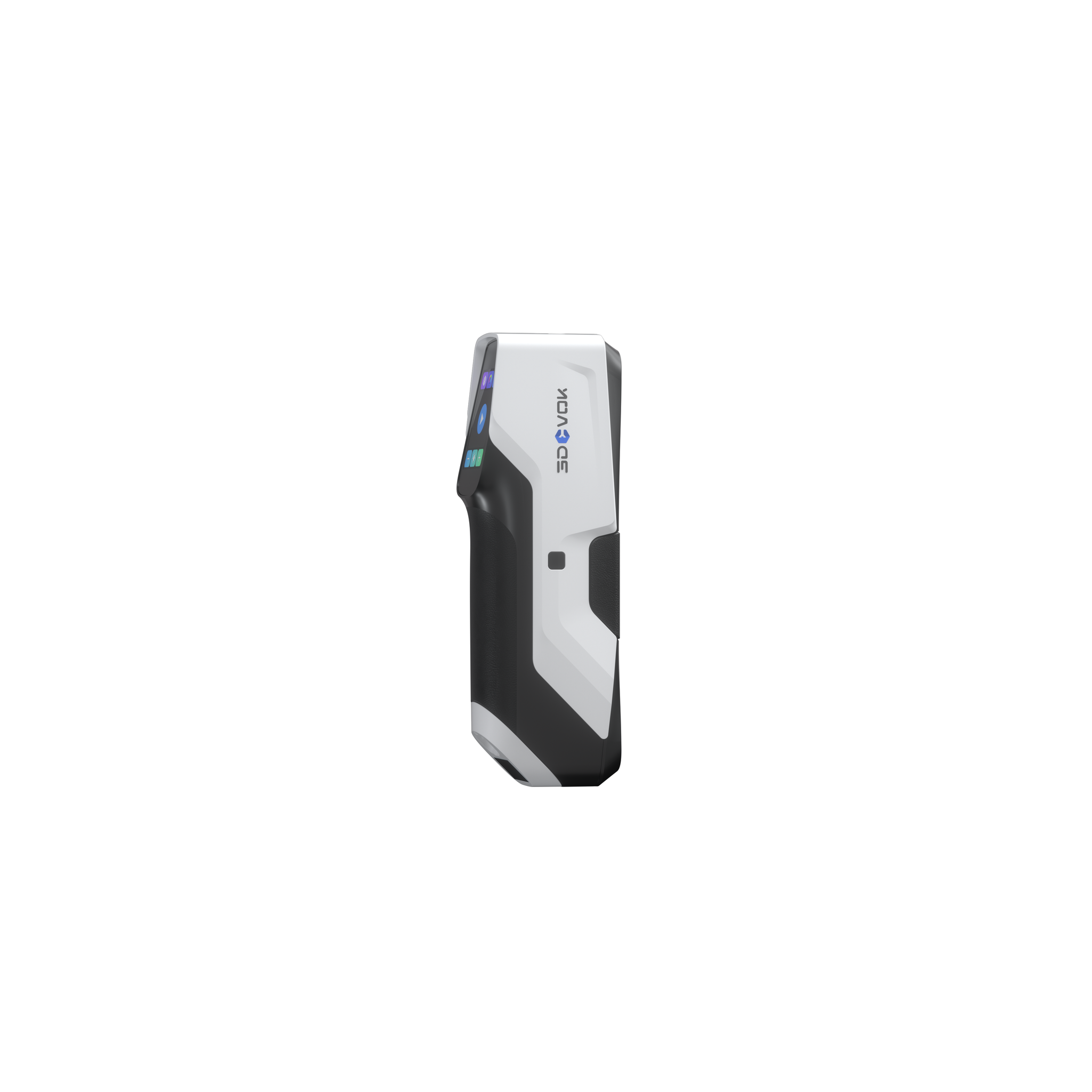

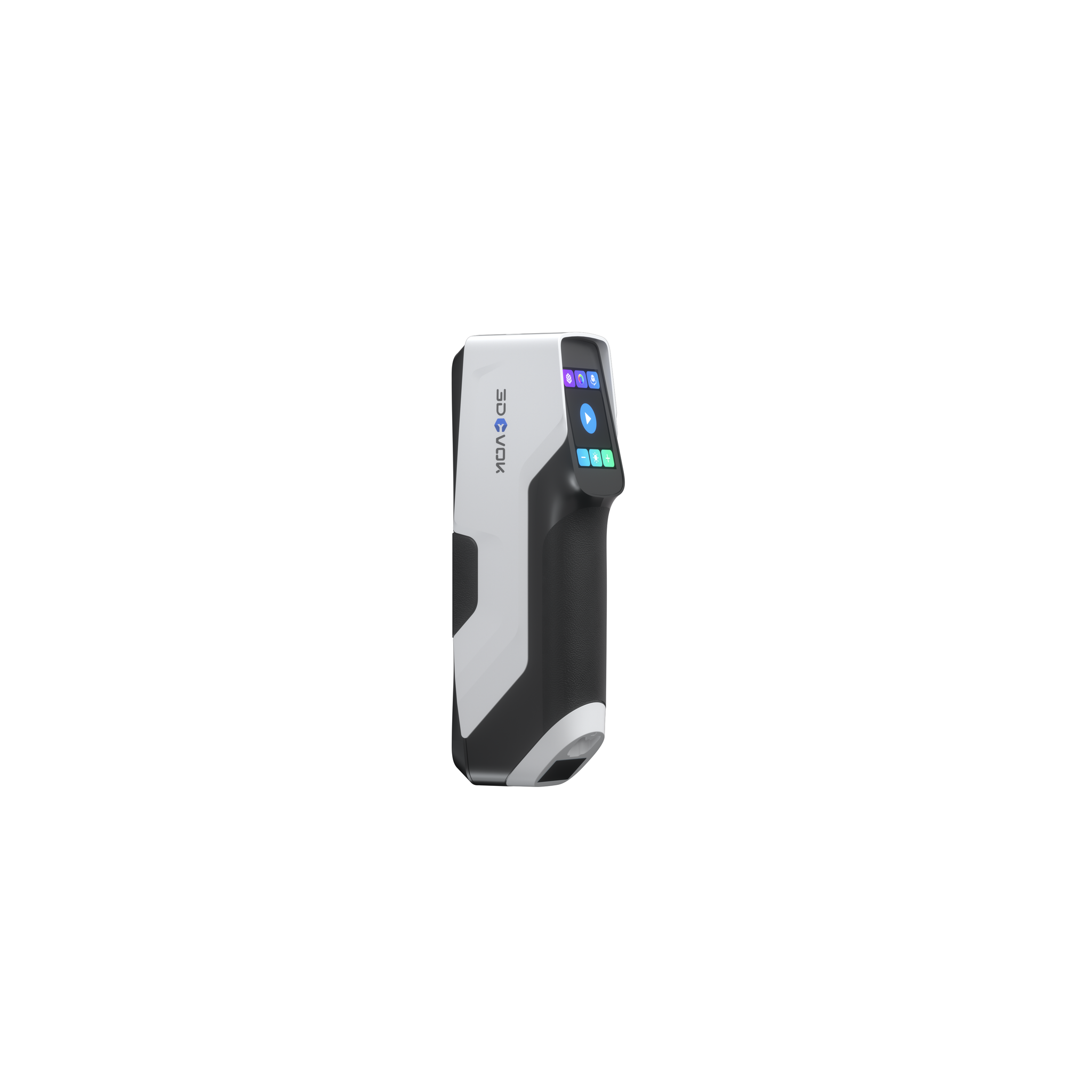

3DeVOK MQ: full-color 3D scanning made accessible
Optimized for texture & color
The 3DeVOK MQ is a powerful yet compact scanner that captures both precise geometry and vivid color in one easy-to-use device. This 3D scanner is ideal for scanning everything from faces and figures to product models and artifacts. Perfect for industries where visual detail matters. Whether you're working in cultural preservation, education, healthcare, or digital media, the 3DeVOK MQ delivers high-resolution results ready for AR/VR, research, or full-color 3D printing.
- Capture in full color: scan both color and texture for realistic digital models
- Quick & simple workflow: minimal setup, smooth scanning, and fast results. No need for markers or complex setups
- Works with many materials: no powder or prep needed, even on shiny or dark surfaces

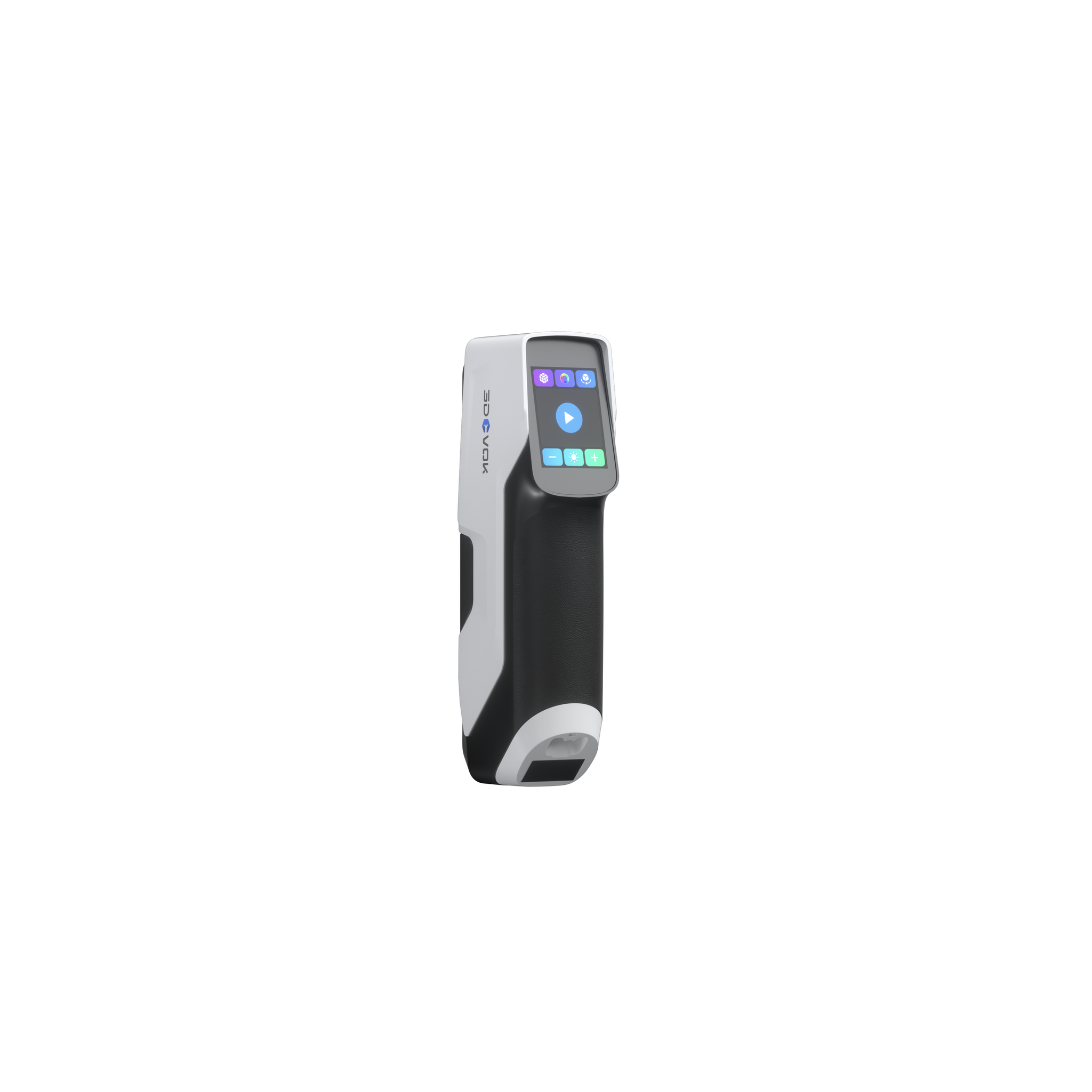

- Portable & flexible: go wireless with the optional handle to scan large objects and enjoy freedom of movement

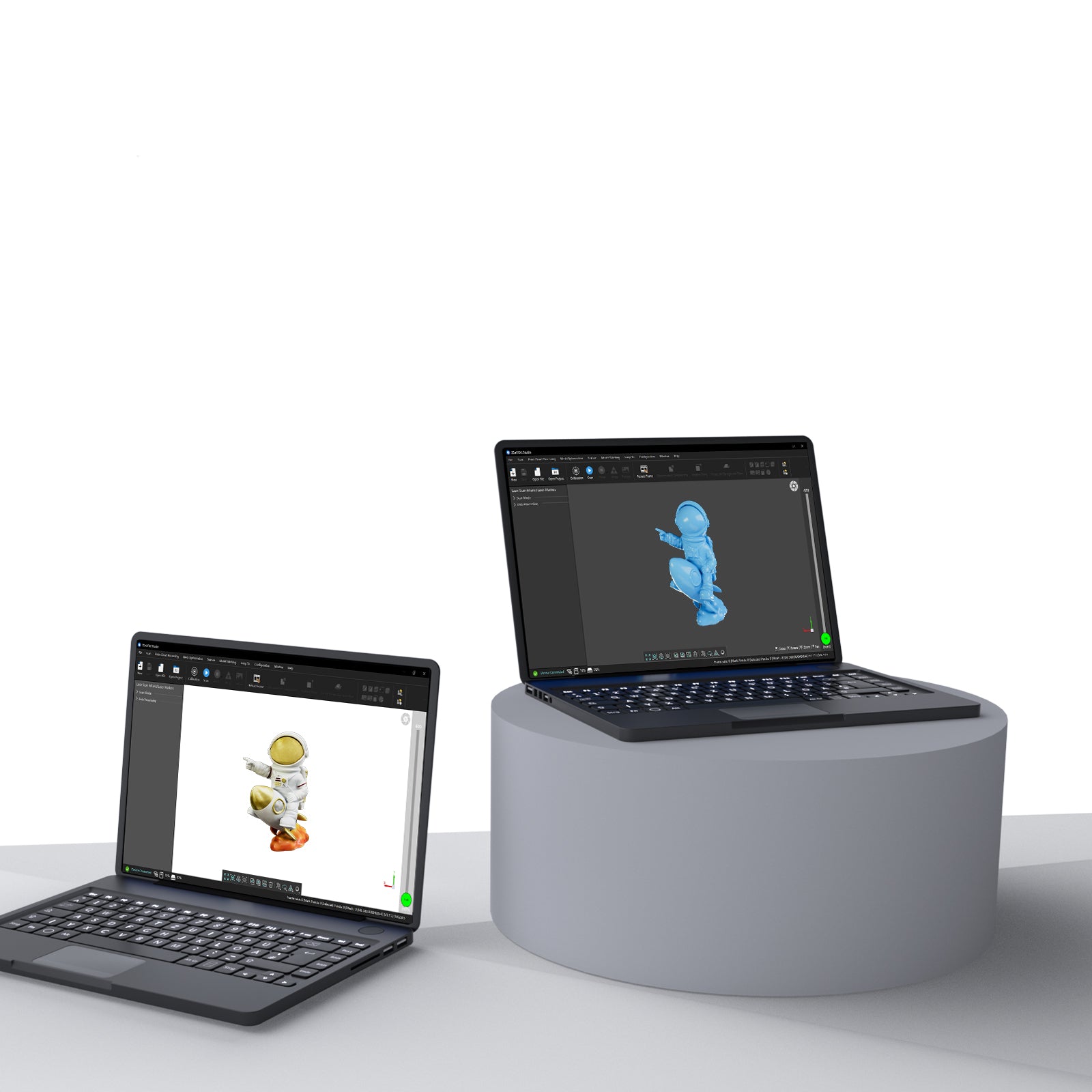

- Intuitive 3DeVOK Studio Software Included: user-friendly software that guides you through every step. From scanning and aligning to final export. With built-in tools for texture mapping, smoothing, and model editing, you can create high-quality 3D files in just minutes.Turn a non-color 3D file into a color 3D one in a short time with only a STL file and multi-angle photos.

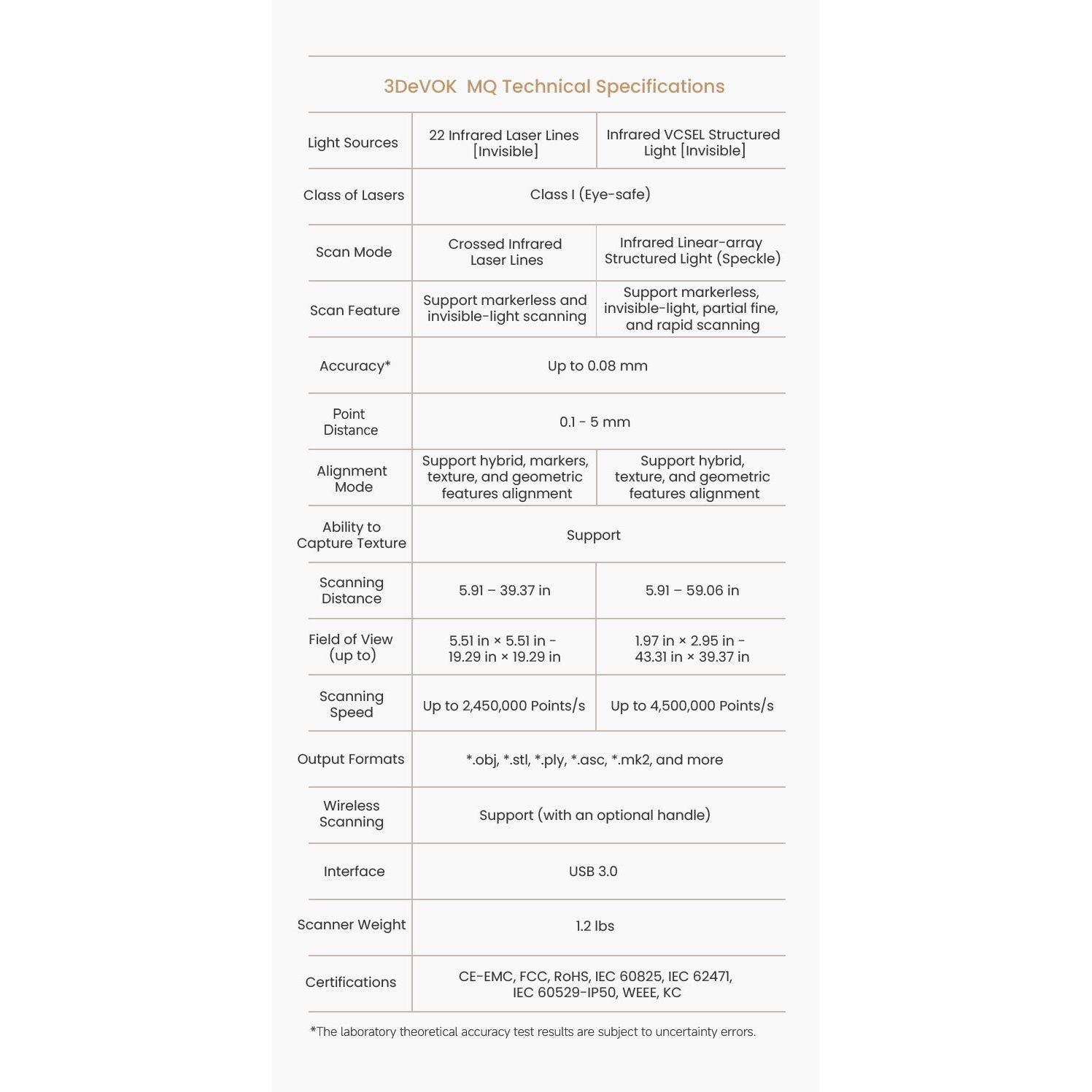

Specifications
| Light Source | 22 Infrared Laser Lines (invisible) | Infrared Vcsel Structured Light (invisble) |
| Class of Lasers | Class I (eye-safe) | Class I (eye-safe) |
| Scan Mode | Infrared Laser (Supports markerless and invisible-light scanning) |
Infrared Linear-array Structured Light (Speckle) (Supports markerless, invisible-light,fine scanning, and rapid scanning at ultra-long-distance range and ultra-large FOV) |
| Basic Accuracy* | Up to 0.1 mm* (Marker Alignment) | Up to 0.1 mm* (Marker Alignment) |
| Volumetric Accuracy* | Up to 0.25mm/m* (Marker Alignment) | Up to 0.25mm/m* (Marker Alignment) |
| Point Distance | 0.1 - 5 mm | Structured Light Scan: 0.2-5 mm,Fine Scan: 0.1-5 mm |
| Alignment Mode | Hybrid Alignment, Marker Alignment, Texture Feature Alignment and Geometric Feature Alignment |
Hybrid Alignment, Marker Alignment, Texture Feature Alignment and Geometric Feature Alignment |
| Ability to Capture Texture | Yes | Yes |
| Scanning Distance | 150-1000mm | 150-1500mm |
| Field of View | 140mm x 140mm - 490mm x 490mm | 50 mm × 75 mm - 1100mm × 1000mm |
|
Scanning Frame |
Up to 70 FPS (Marker Alignment) Up to 30 FPS (Hybrid Alignment) |
Up to 30 FPS |
| Output Formats | *.obj, *.stl, *ply, *.asc, *.mk2, *.txt, *.epj, *.apj, *.spj, *.map | *.obj, *.stl, *ply, *.asc, *.mk2, *.txt, *.epj, *.apj, *.spj, *.map |
|
The Ability for 3D Printing |
Supports .stl, .obj and other formats | Supports .stl, .obj and other formats |
| Working Temperature Range | 0-40°C | 0-40°C |
| Working Humidity Range | 10% - 90% RH (Non-condensing) | 10% - 90% RH (Non-condensing) |
| Interface | USB 3.0 | USB 3.0 |
| Scanner Dimensions & Weight | Dimensions: 215 mm × 73 mm × 53 mm; Weight: 620 g | |
| Power Source | DC:12 V,5.0 A | |
| Recommended Configuration of PC | OS: Win10/Win11, 64-bit; CPU: i7-13650HX and above; RAM: 32GB and above Graphic Card: NVIDIA discrete graphics card, NVIDIA RTX3060 and above Graphics Memory: 6GB and above |
