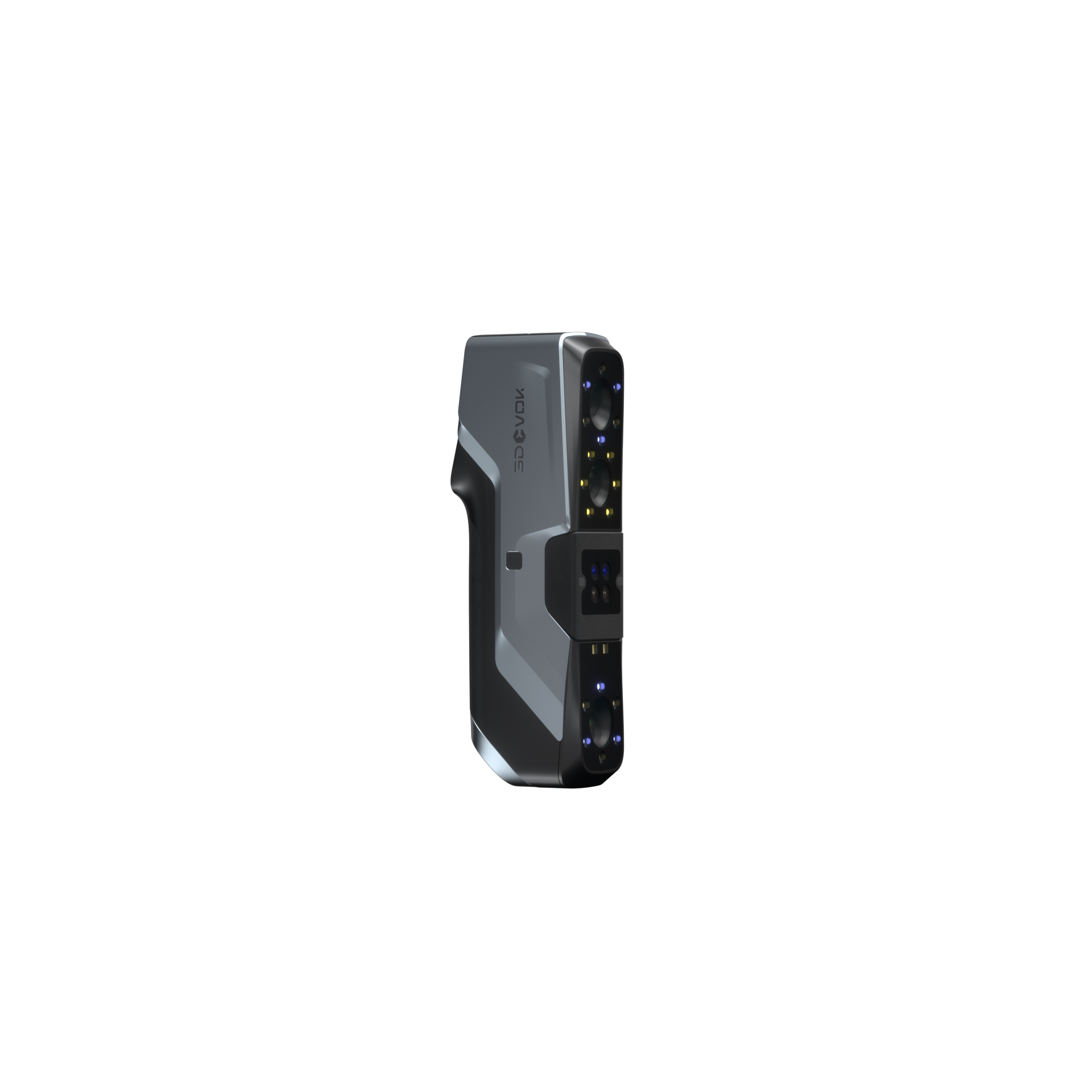

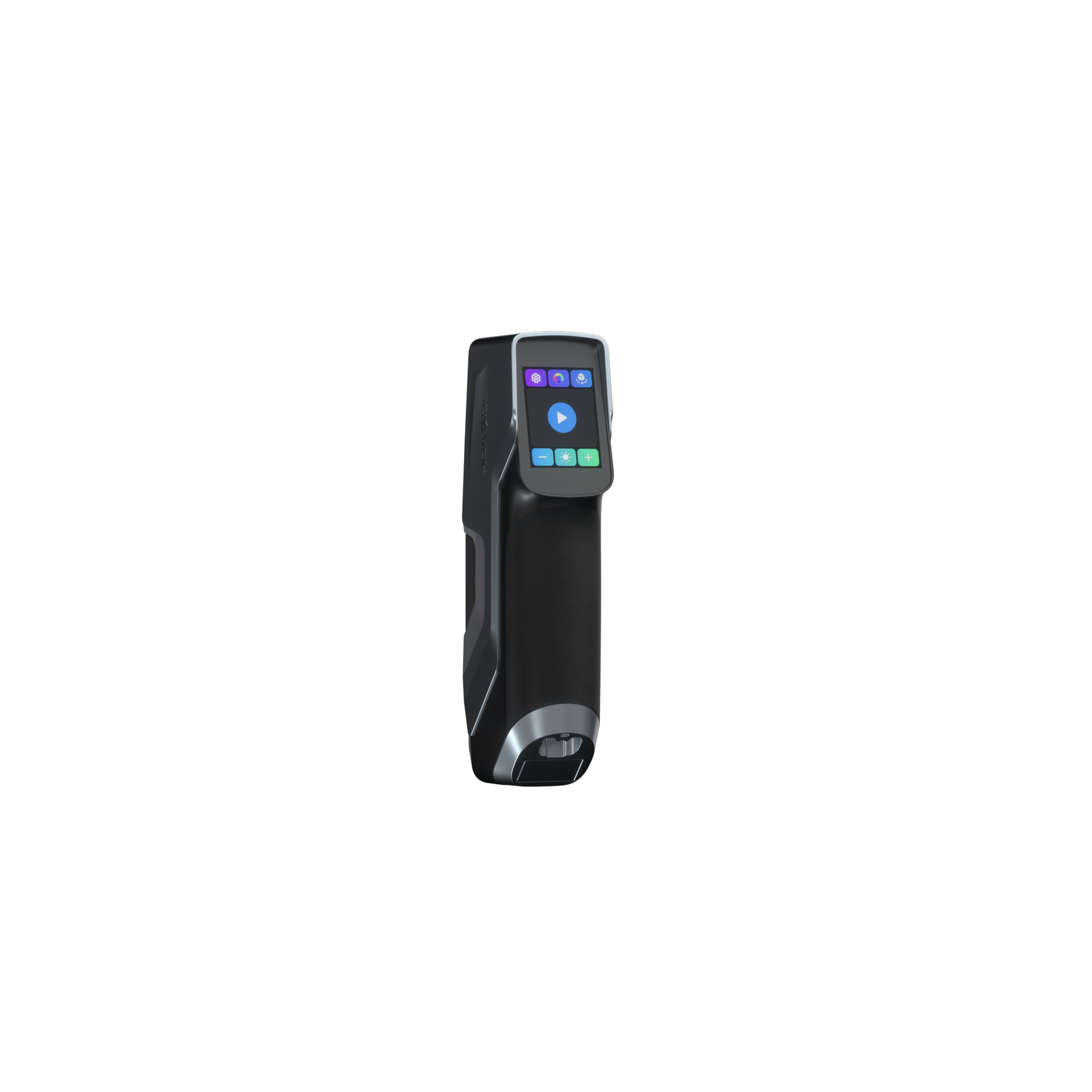

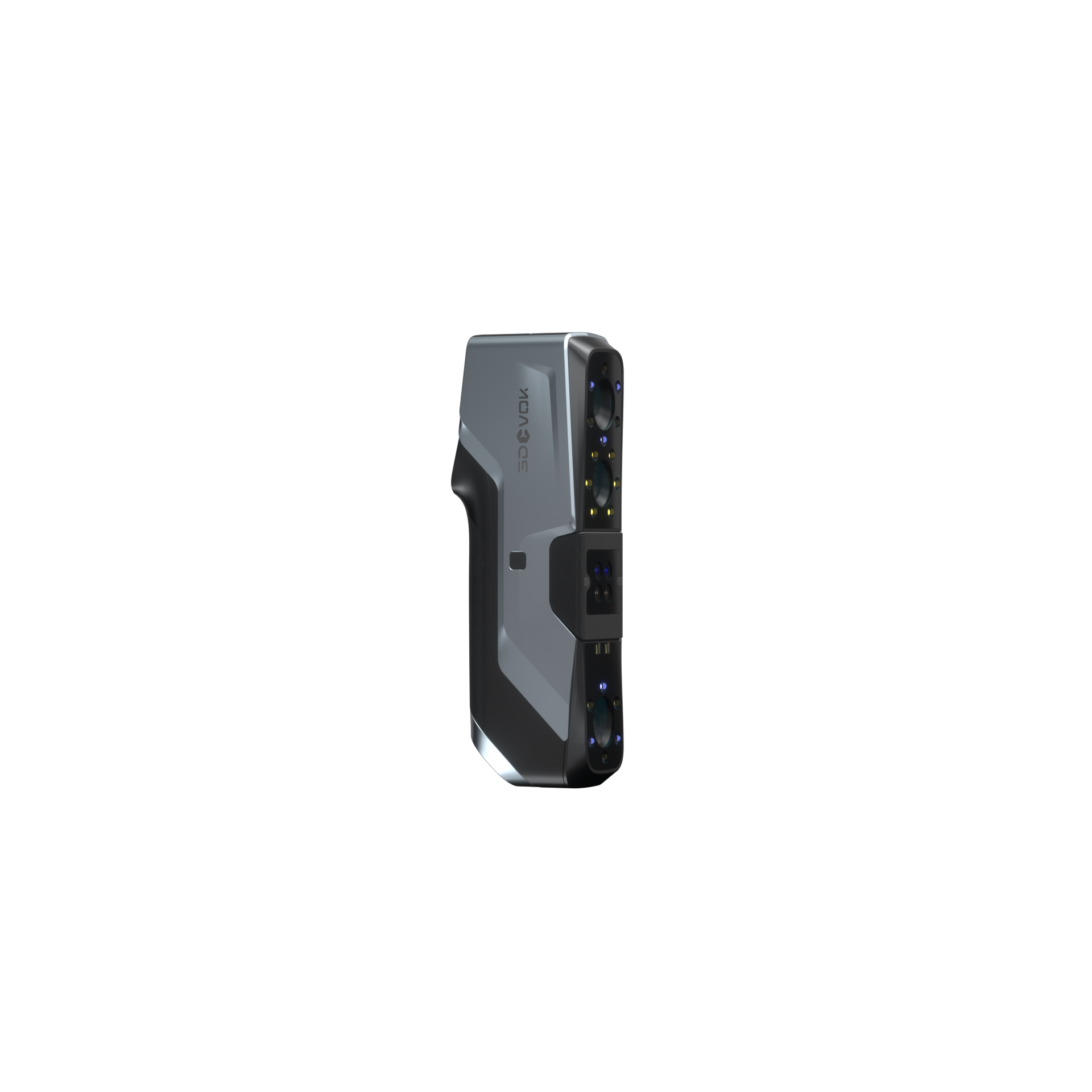

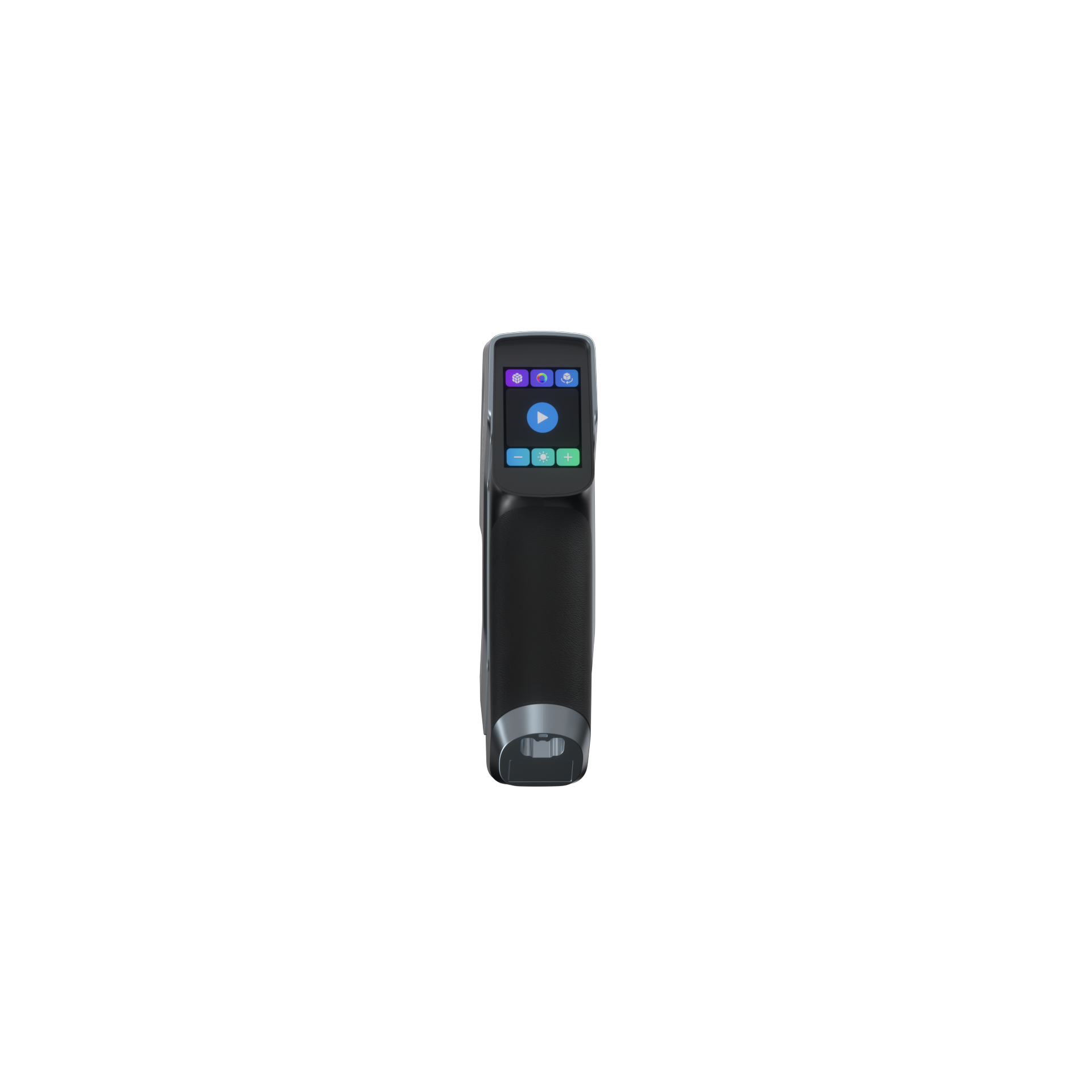

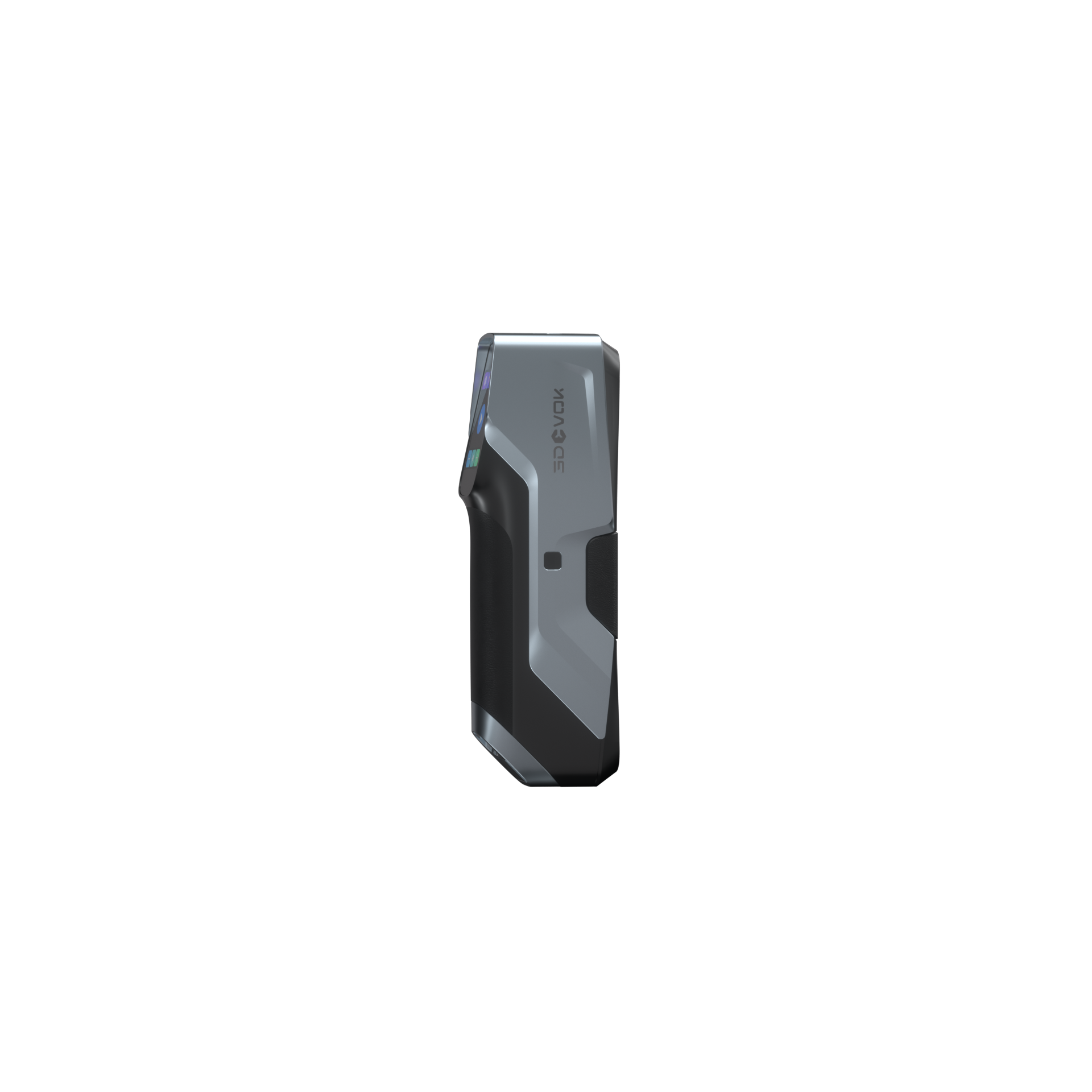

3DeVOK MT: professional-grade precision, built for demanding work
Built for detail & accuracy

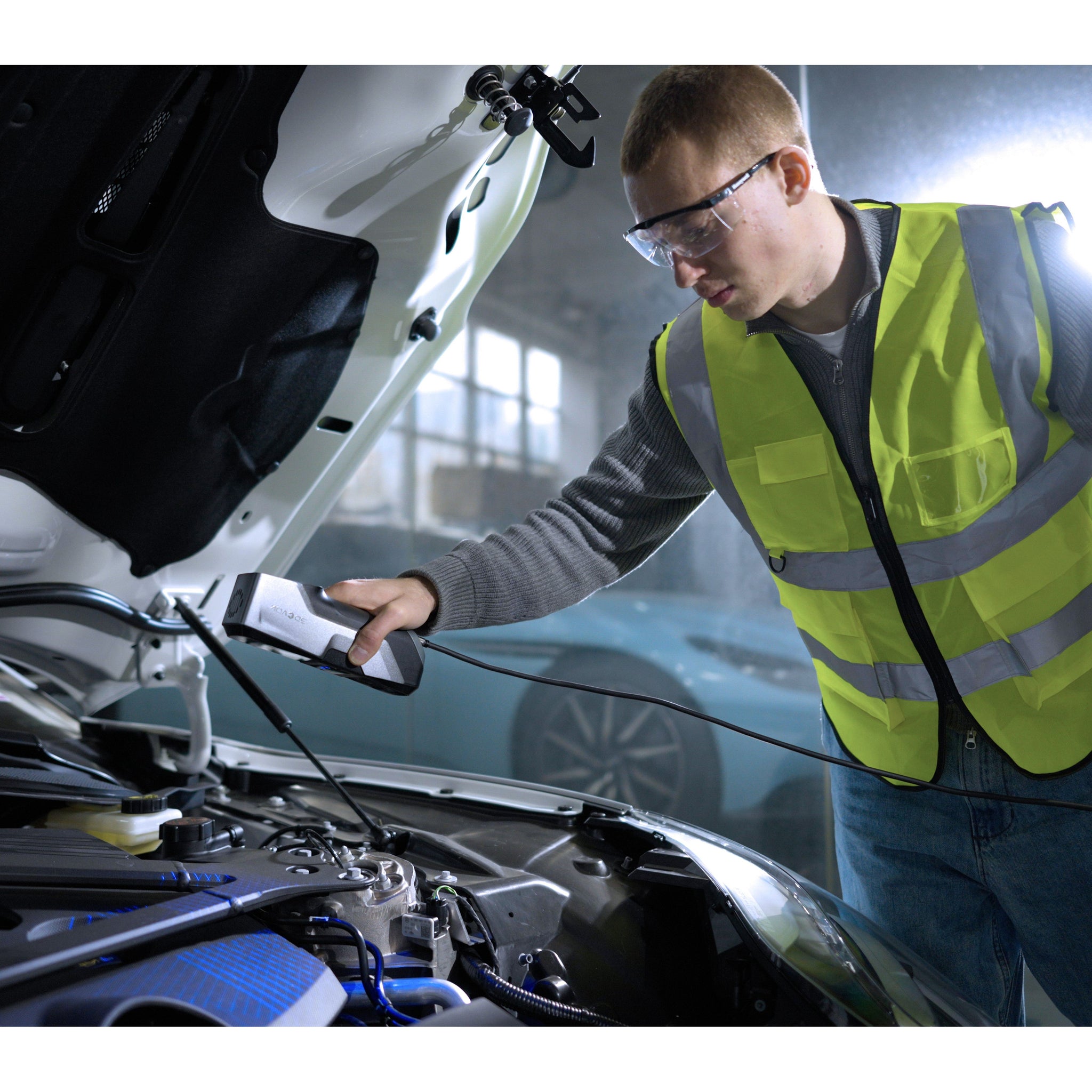

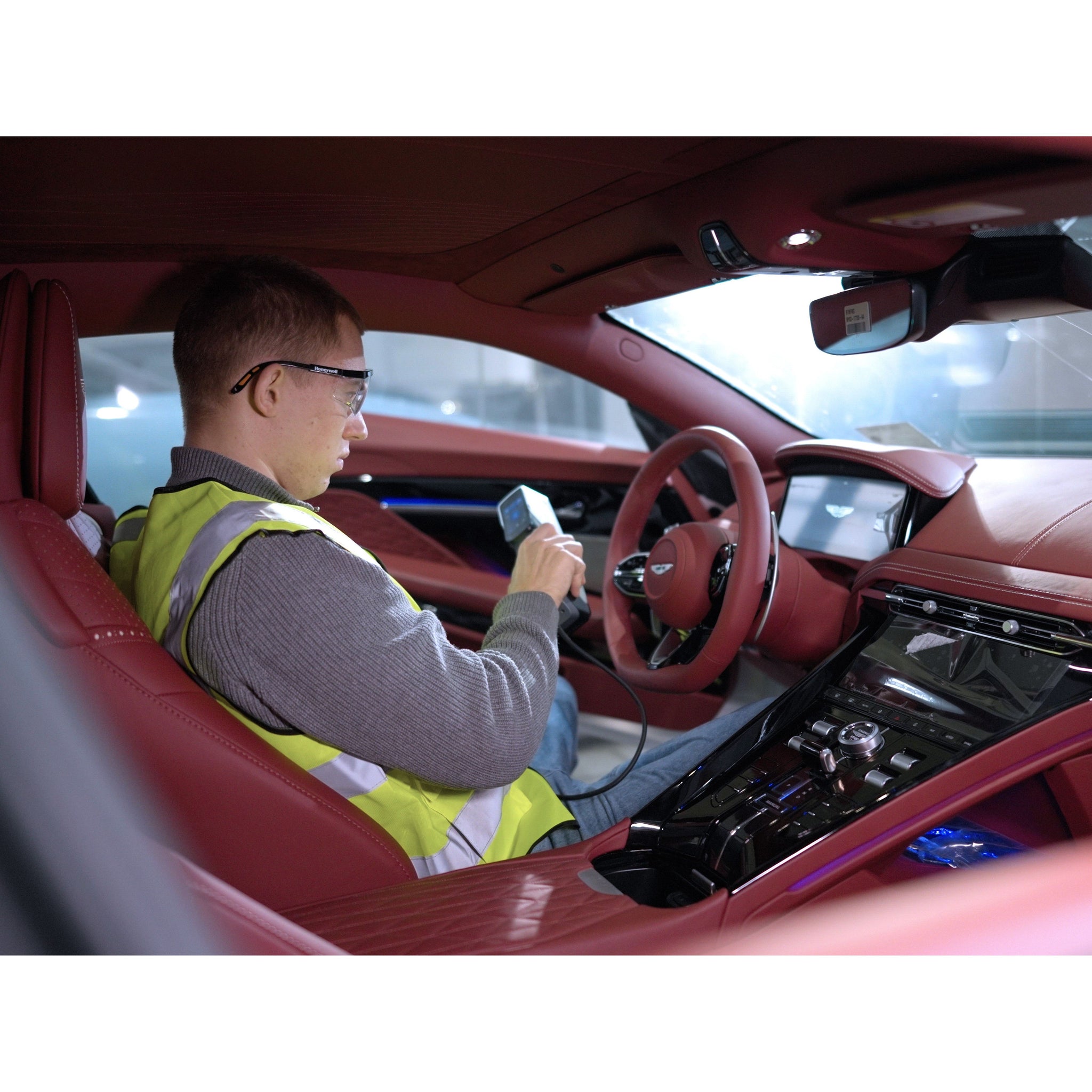

For users who need more detail and flexibility, the 3DeVOK MT delivers high-accuracy 3D scanning in a handheld format. Perfect for applications where shape, structure, and dimensional accuracy are key. From engineering and product development to medical and industrial use, the 3DeVOK MT captures complex surfaces and fine details with professional-grade precision. Ideal for reverse engineering, product inspection, and digital archiving.
-
Sharp, accurate scans: capture very fine details with up to 0.04 mm precision
-
Ready for real-world use: scan reliably in a variety of lighting and surface conditions
-
Fast data capture: speed up your workflow with fast and stable scanning
-
No markers needed: enjoy hassle-free scanning without target stickers when you use the infrared mode.
-

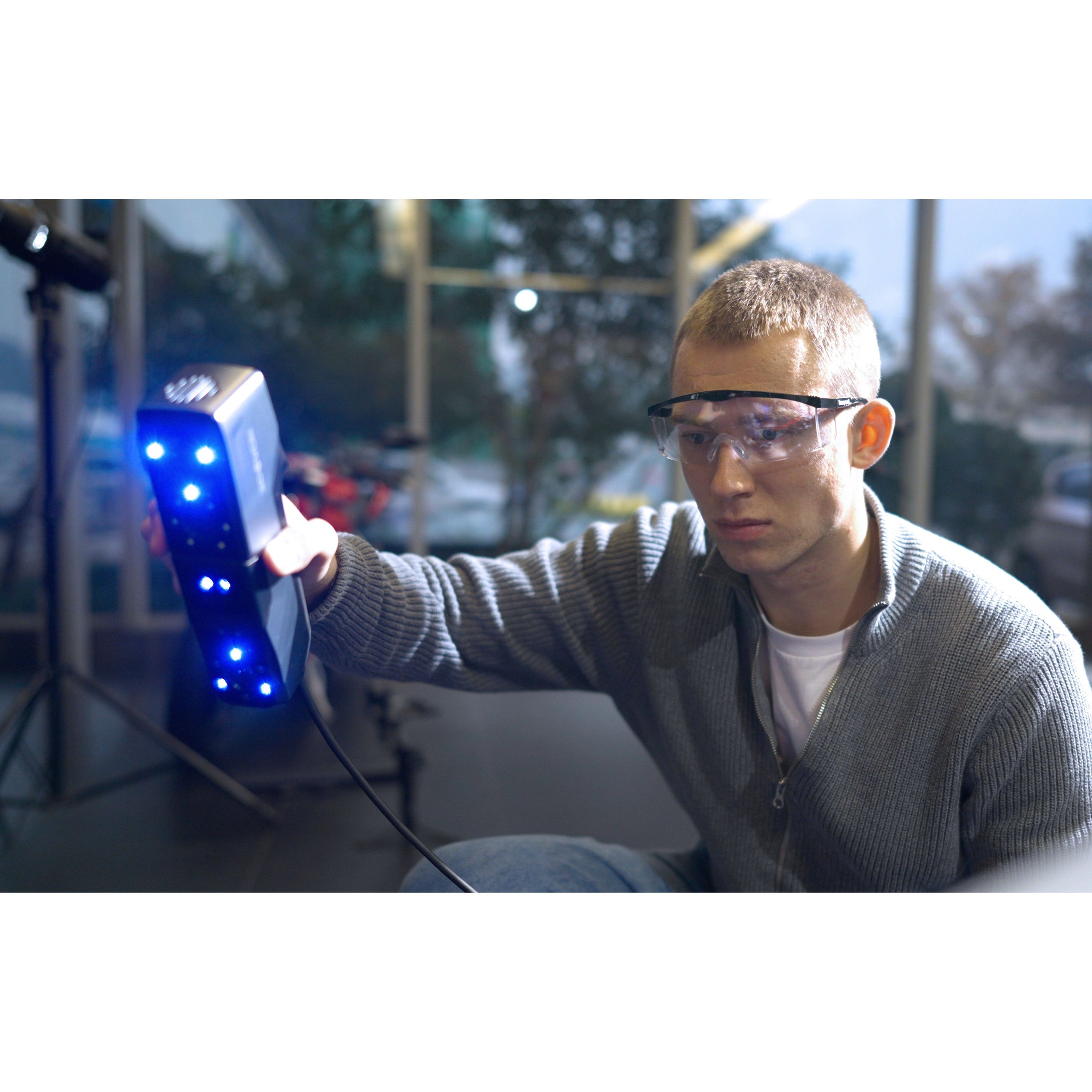

Scans large and small objects: from tiny components to big objects, this 3D scanner handles it all with the blue light mode.
Intuitive software included
3DeVOK Studio
Both scanners come with 3DeVOK Studio, our user-friendly software that guides you through every step. From scanning and aligning to final export. With built-in tools for texture mapping, smoothing, and model editing, you can create high-quality 3D files in just minutes.
3DeVOK mapping software
The free 3DeVOK mapping software is a smart texture mapping software that enables you to turn a non-color 3D file into a color 3D one in a short time with only a STL file and multi-angle photos.
Start scanning smarter
Whether you're creating digital assets, preserving real-world items, or accelerating product design, 3DeVOK gives you the tools to scan with confidence. Discover how easy and powerful 3D scanning can be.
Specifications

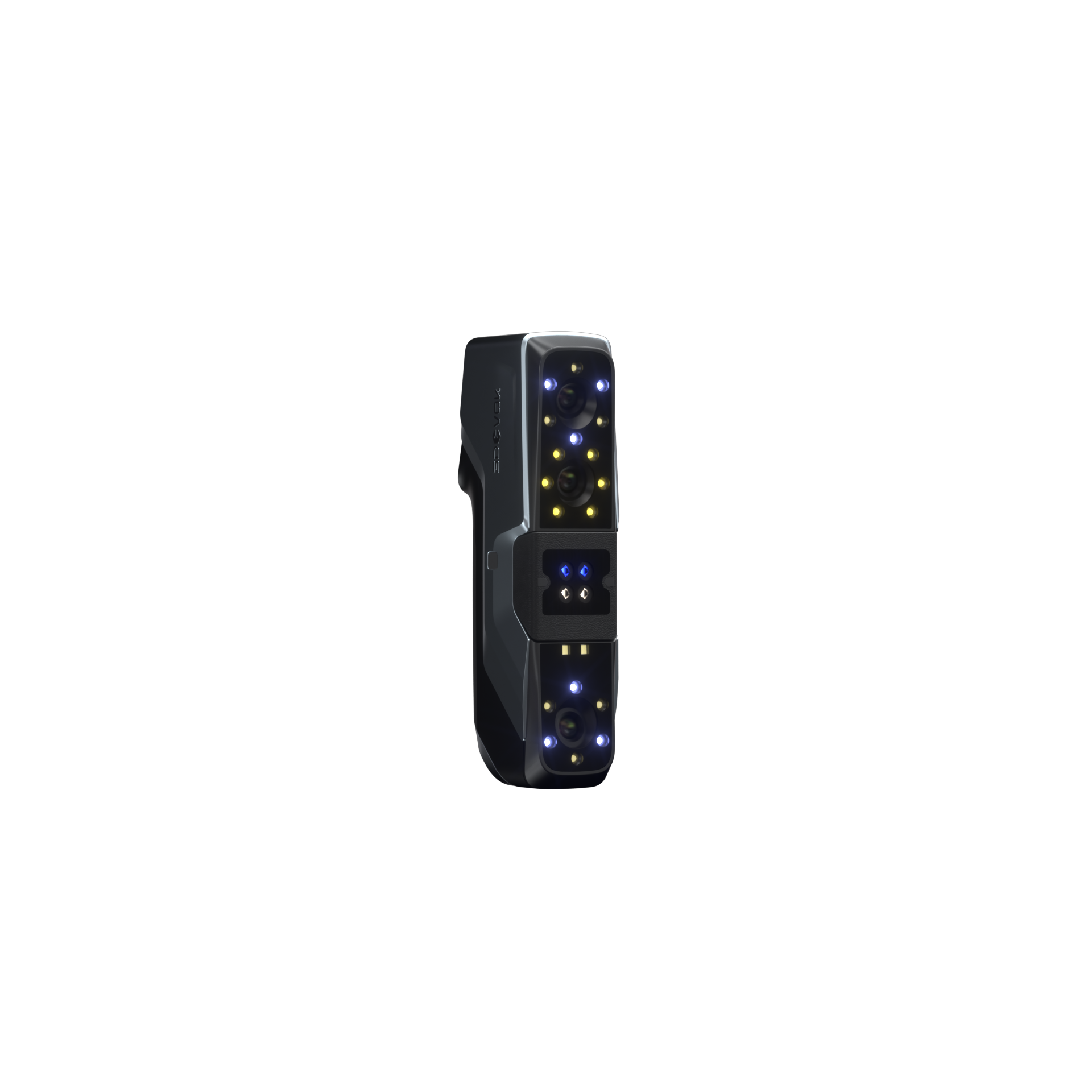

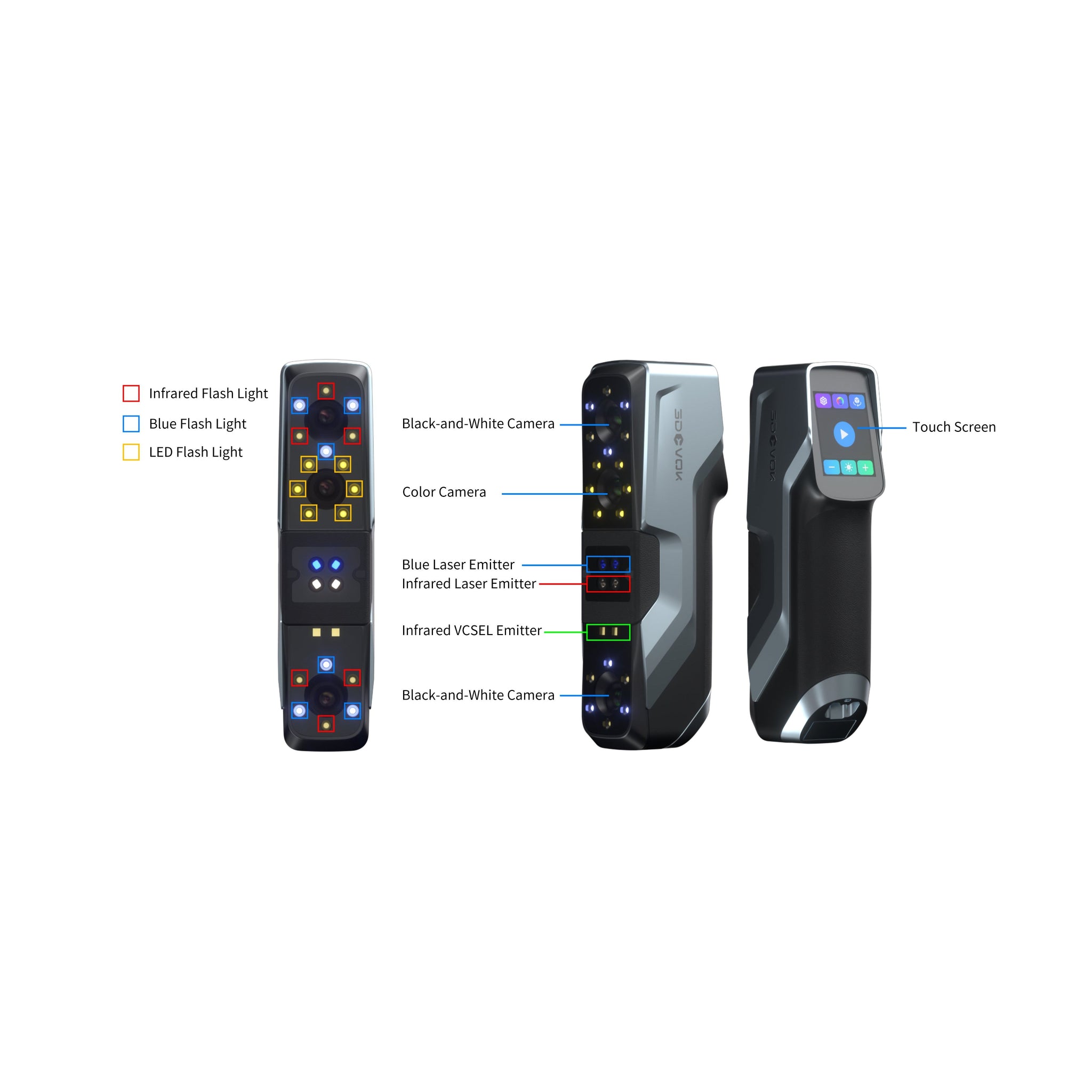

| Light Source | 34 Blue Laser Lines | 22 Infrared Laser Lines | Infrared VCSEL Structure Light |
| Laser Class | Class 1 (eye-safe) | Class 1 (eye-safe) | Class 1 (eye-safe) |
| Scan Mode |
Crossed Blue Lasers Supports markerless scanning |
Crossed Infrared Lasers Supports markerless and invisible-light scanning |
Infrared Linear-array Structured Light-Speckle Supports markerless, invisible scanning, partial fine scanning, and rapid scanning at ultra-long-distance range and ultra-large FoV |
| Basic Accuracy * | up to 0.04mm | up to 0.04mm | up to 0.04mm |
| Volumetric Accuracy * | Up to 0.04 mm + 0.06 mm/m | Up to 0.04 mm + 0.06 mm/m | Up to 0.04 mm + 0.06 mm/m |
| Point Distance | 0.05-5mm | 0.1-5mm | 0.1-5mm |
| Alignment Mode | Hybrid, marker, texture, and feature alignment | Hybrid, marker, texture, and feature alignment | Hybrid, texture, and feature alignment |
| Ability to capture texture | Yes | Yes | Yes |
| Scanning Distance | 150-1000mm | 150-1000mm | 150-1500mm |
| Field of View | 140mm x 140mm-490mm x 490mm | 140mm x 140mm-490mm x 490mm | 50mm x 75mm-1100mm x 1000mm |
| Scanning Rate | Up to 3,300,000 Points/s | Up to 2,450,000 Points/s | Up to 4,500,000 Points/s |
| Output Formats |
*.obj, *.stl, *ply, *.asc, *.mk2,*.txt,*.epj,*.apj, *.spj,*.map, *sk |
*.obj, *.stl, *ply, *.asc, *.mk2,*.txt,*.epj,.apj, .spj,*.map, *sk |
*.obj, *.stl, *ply, *.asc, *.mk2,*.txt,*.epj,.apj, .spj,*.map, *sk |
| Operating Conditions | 0–40°C, 10%–90% RH (non-condensing) | 0–40°C, 10%–90% RH (non-condensing) | 0–40°C, 10%–90% RH (non-condensing) |
| Interface | USB 3.0 | USB 3.0 | USB 3.0 |
| Scanner Dimensions & Weight | Dimensions: 215 mm × 73 mm × 53 mm; Weight: 620 g | Dimensions: 215 mm × 73 mm × 53 mm; Weight: 620 g |
Dimensions: 215 mm × 73 mm × 53 mm; Weight: 620 g |
| Power Source | DC: 12 V, 5.0 A | DC: 12 V, 5.0 A | DC: 12 V, 5.0 A |
| Certifications | CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC | CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC | CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC |
| Recommended Configurations for PC |
OS: Win10/Win11, 64-bit; CPU: i7-13650HX and above; RAM: 32GB and above; Graphic Card: NVIDIA discrete graphics card, NVIDIA RTX3060 and above; Graphics Memory: 6GB and above |
*The laboratory theoretical accuracy test results are subject to uncertainty errors.
*Free One Year Manufacturer Warranty
