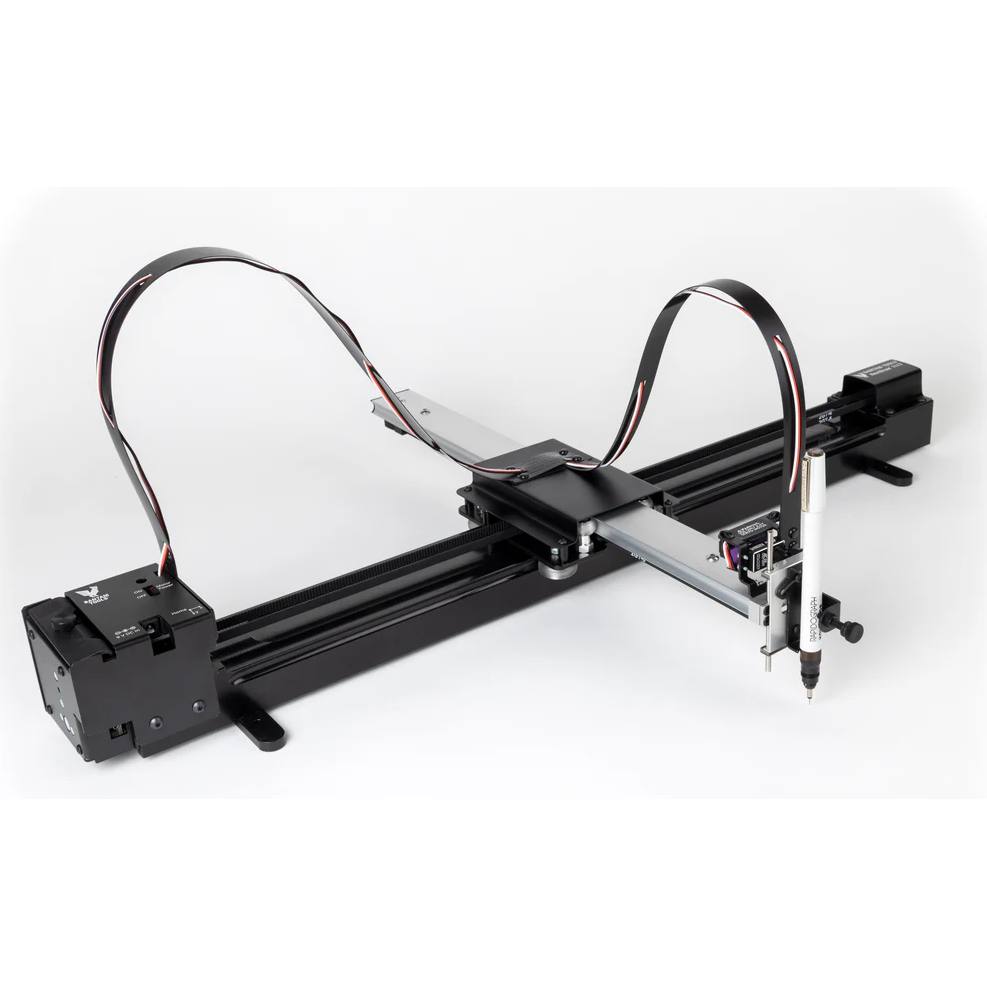

The New Bantam Tools NextDraw™ 1117 is the proven and reliable computer-controlled plotter that provides versatile solutions to artists, innovators and educators.

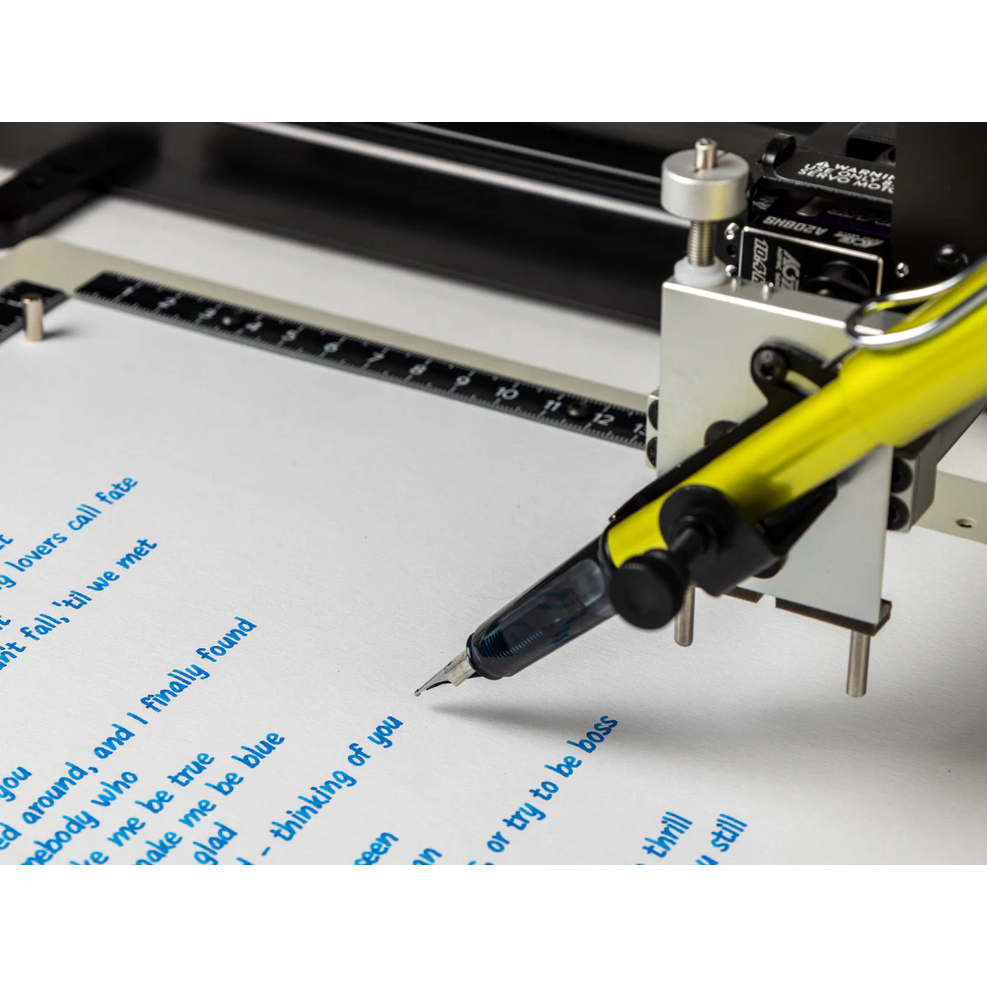

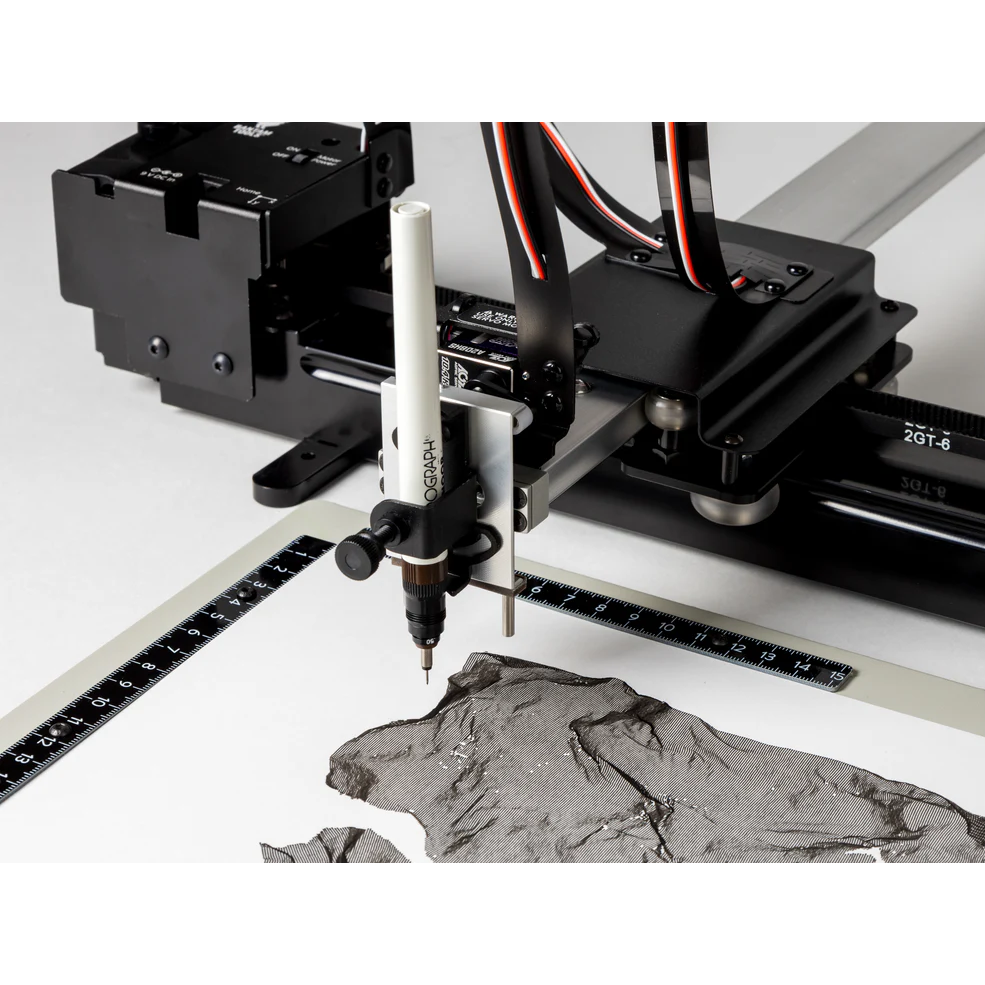

The Bantam Tools NextDraw™ 1117 pen plotter has an 11x17" or A3 size drawable area. This is the prime choice for artists using the Bantam Tools NextDraw™ series of drawing and handwriting machines and working with medium format. This plotter has all the power, speed, and features of the machines in this series and is optimized to strike a great balance between plottable area and size.
Features:
- Tabloid/Ledger/A3 size drawing area.
- Significant speed increase with updated firmware and brushless pen lift motor.
- An auto-homing feature improves ease of use.

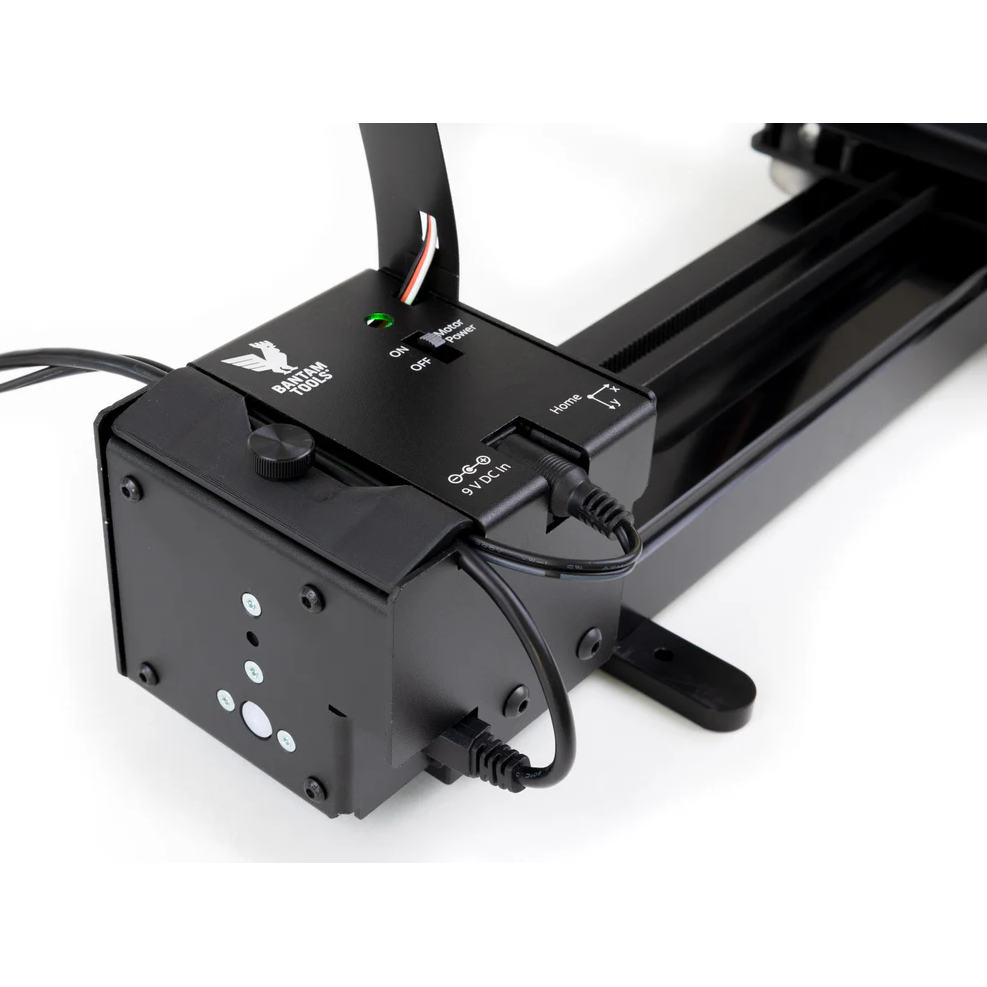

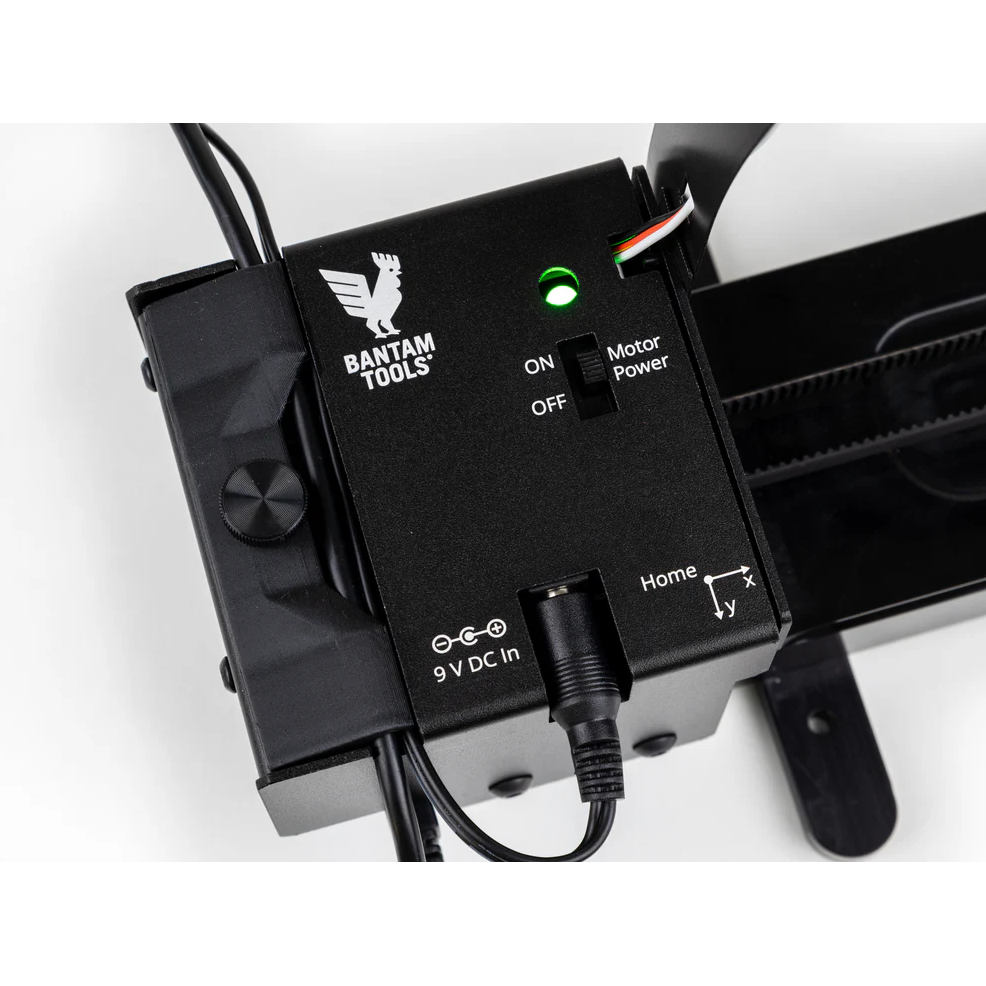

- Sturdy electronics enclosure has easily accessible on-off switch, hardware pause and reset buttons, and built-in cable strain relief.

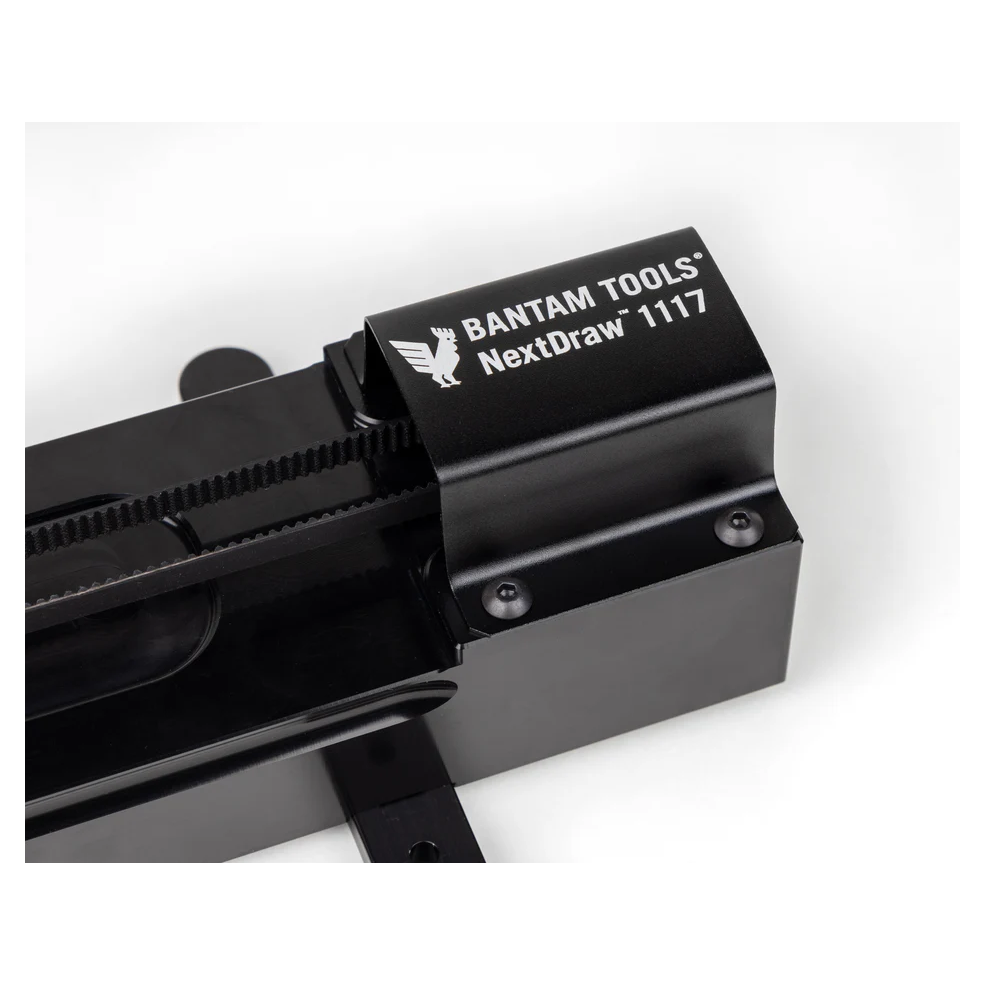

- Central beam machined from billet 6061 aluminum with tight tolerances for increased precision and added weight for increased stability.
- Familiar software with improved experience in Inkscape, with available command-line and python interfaces.
- FCC certified.
- International Edition CE certified.
- Manufactured in New York.
Specifications:
Performance:
- Usable pen travel (inches): 16.93 × 11.69 inches.
- Usable pen travel (millimeters): 430 × 297 mm.
- Vertical pen travel: 0.7 inch (17 mm).
- Vertical pen travel: 0.3 inch (7.5 mm) typical when using spring.
- Maximum XY travel speed: 15 inches (38 cm) per second.
- Native XY resolution: 2032 steps per inch (80 steps per mm).
- Reproducibility (XY): Typically better than 0.004 inches (0.1 mm) at low speeds.
Physical:

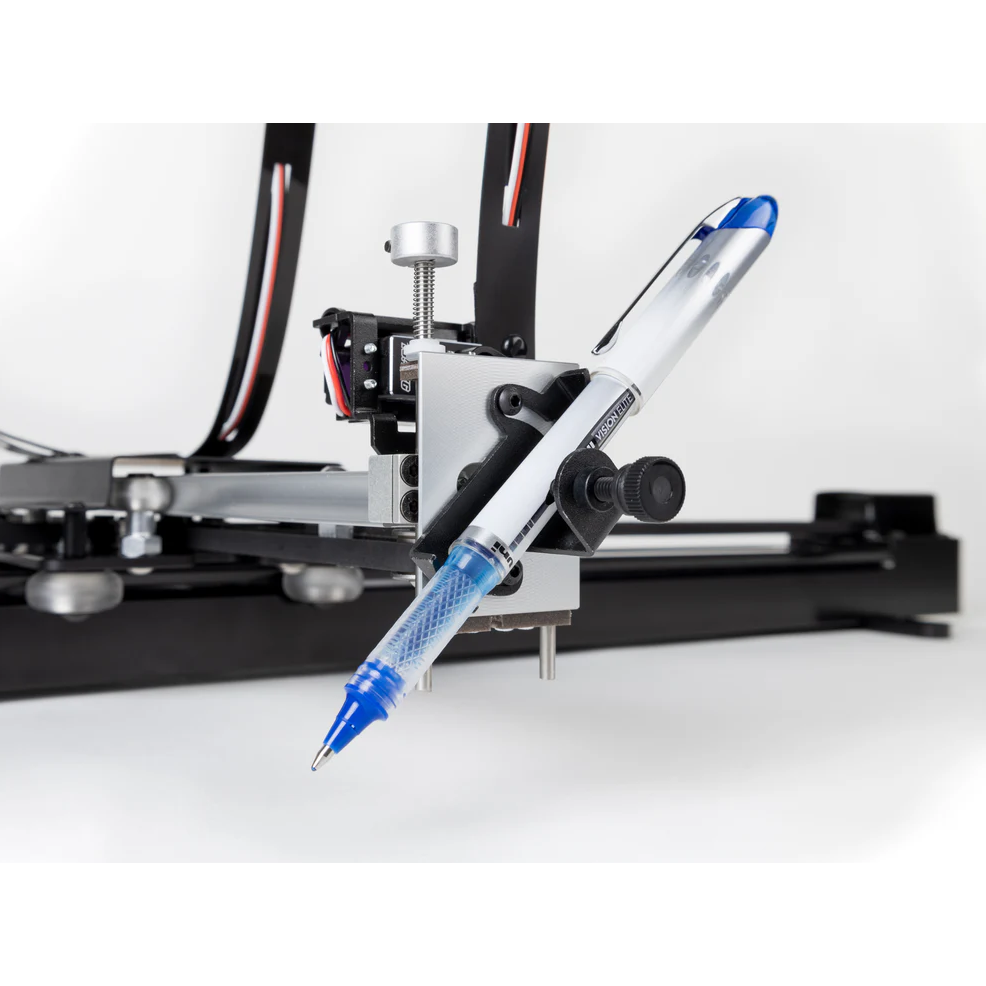

- Holds pens and other instruments up to 5/8" (16 mm) diameter.
- Overall dimensions: Approximately 26 × 19 × 5 inches (66 × 48 × 13 cm).
- Maximum height with cable guides: Approximately 11 inches (29 cm).
- Footprint: Approximately 26 × 5 inches (66 x 13) cm.
- Physical weight: 8.8 Lb (4 kg).
- Dimensional shipping weight: 35 lb (16 kg).
Software:
-
Compatible with Mac, Windows, and Linux.
Driven directly from within Inkscape,
using the Bantam Tools NextDraw™ software.
Programming is not required
but additional programming interfaces are available.
