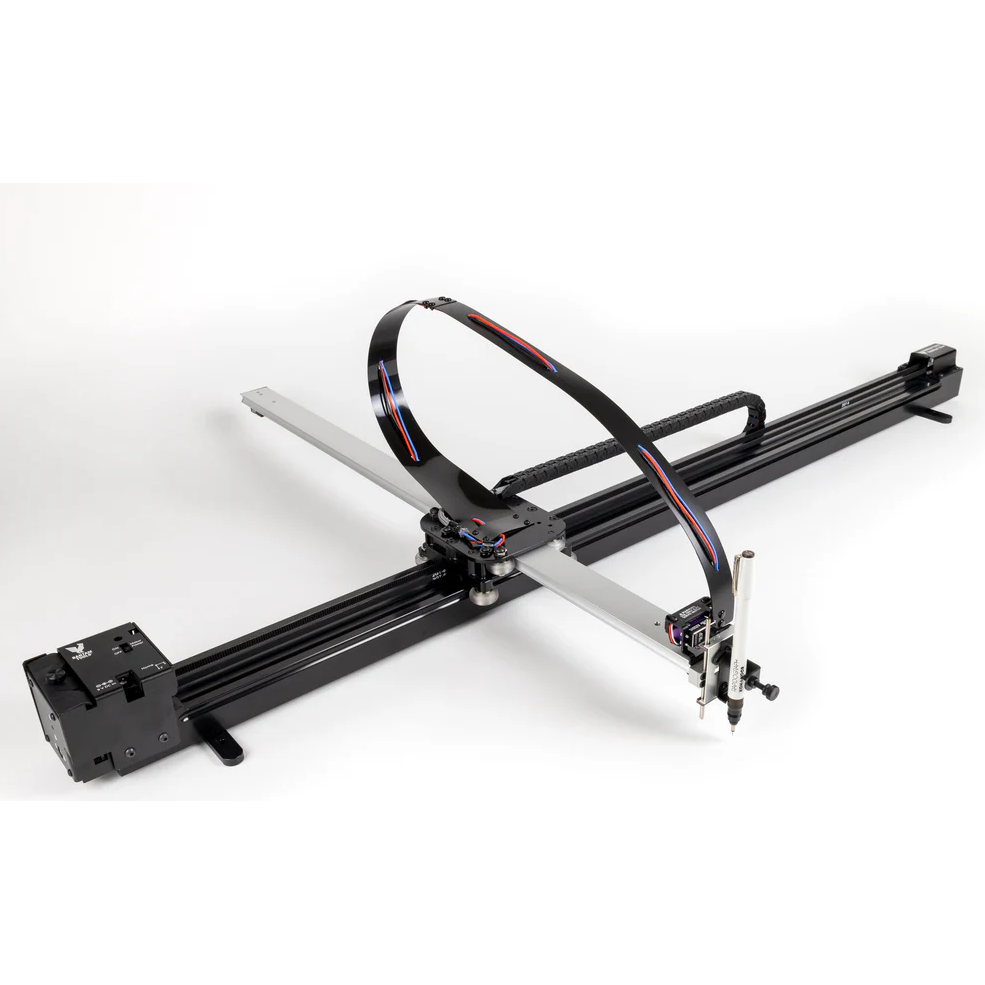

The New Bantam Tools NextDraw™ 2234 is the proven and reliable computer-controlled plotter that provides versatile solutions to artists, innovators and educators.

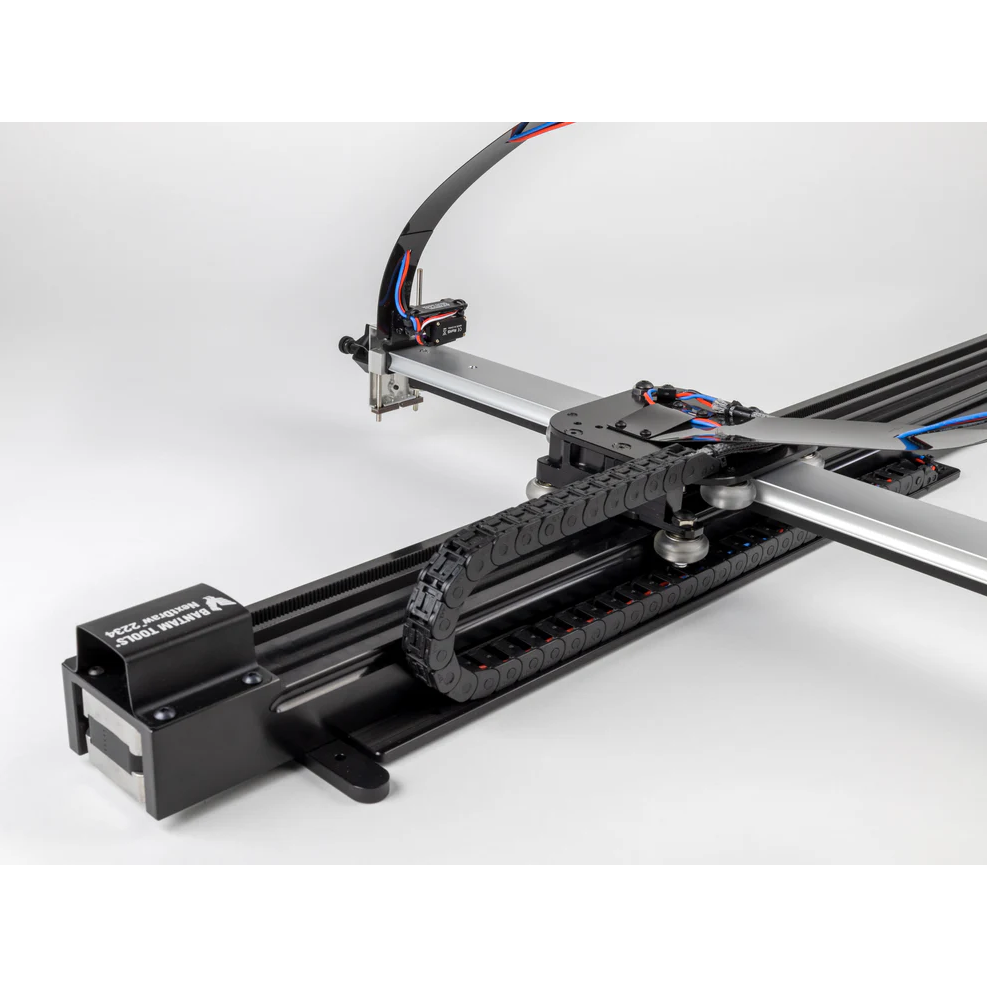

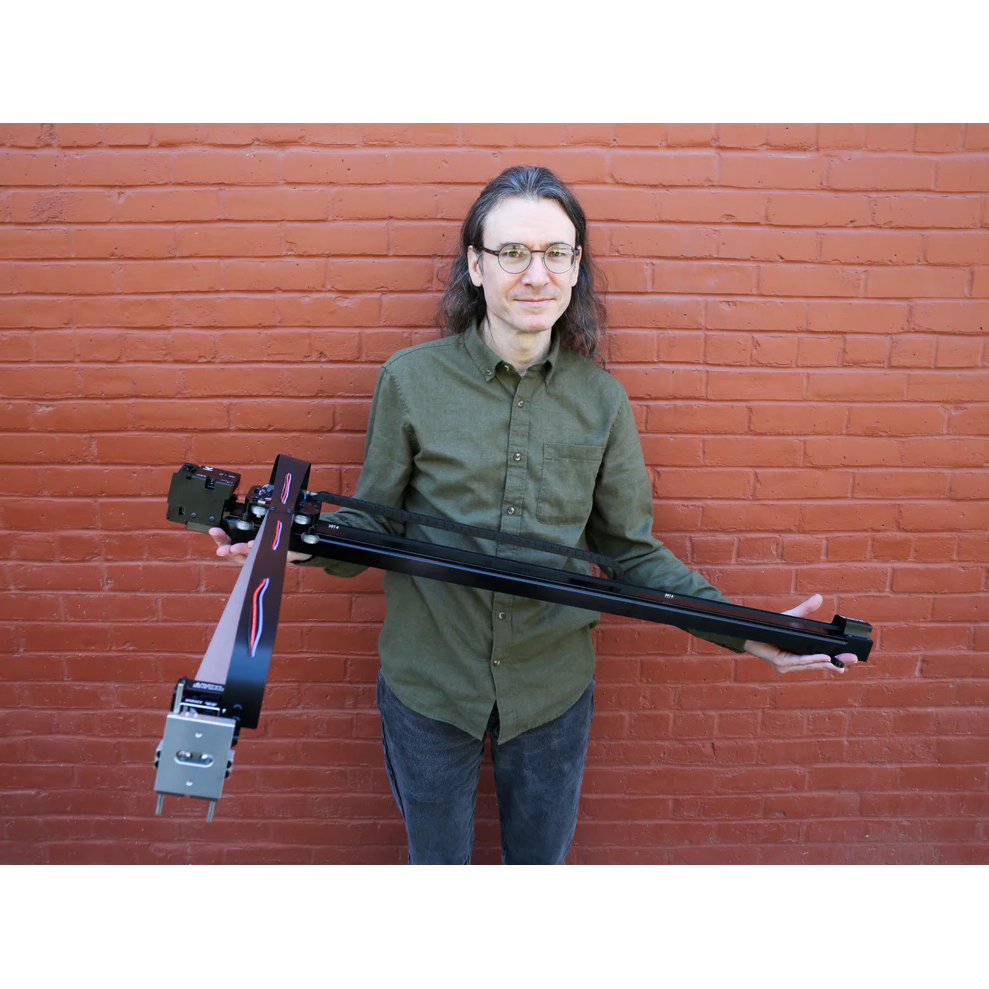

The Bantam Tools NextDraw 2234™ is the ultimate large format pen plotter, beloved by professional artists who desire impressive sized pen plots. With a plot area of 22×34"/ A1 size, this is the largest machine in the Bantam Tools NextDraw™ series of pen plotters.
Features:
- 22×34" (ANSI D) / A1 size drawing area.
- Significant speed increase with updated firmware and brushless pen lift motor.
- An auto-homing feature improves ease of use.

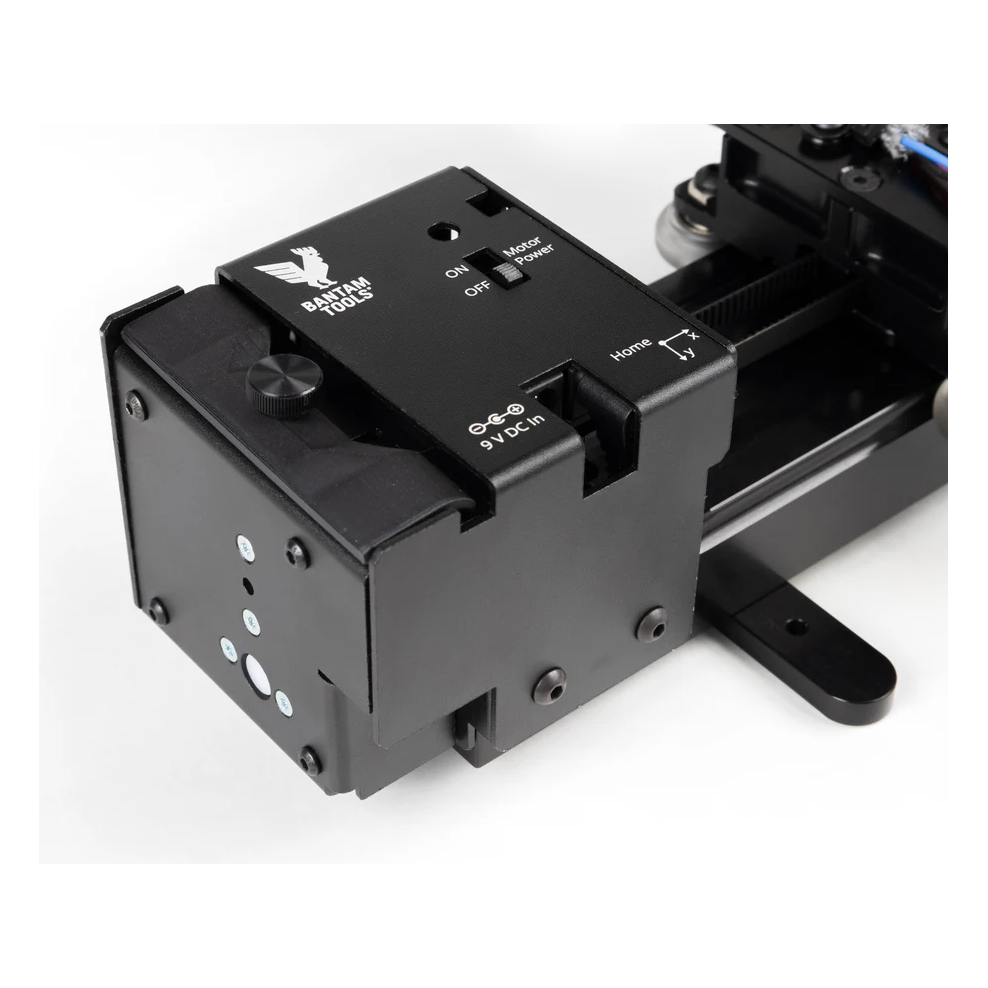

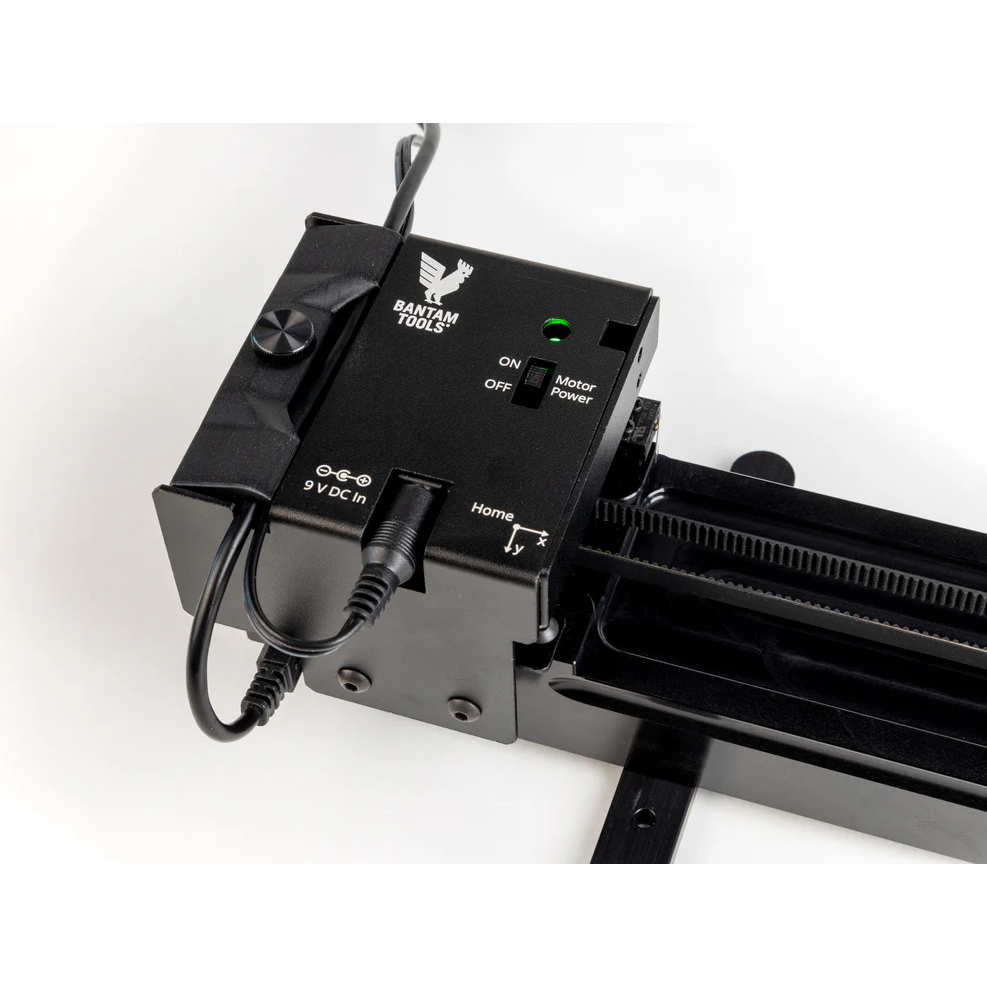

- Sturdy electronics enclosure has easily accessible on-off switch, hardware pause and reset buttons, and built-in cable strain relief.

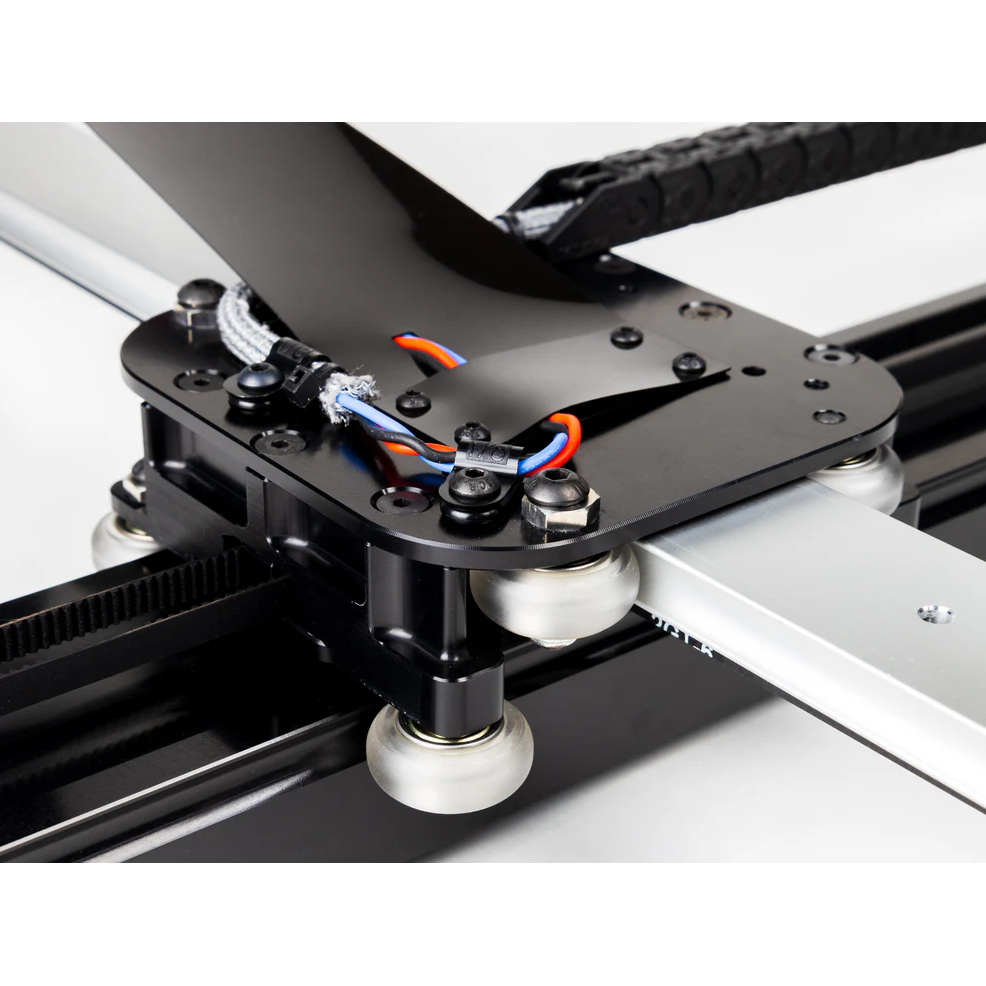

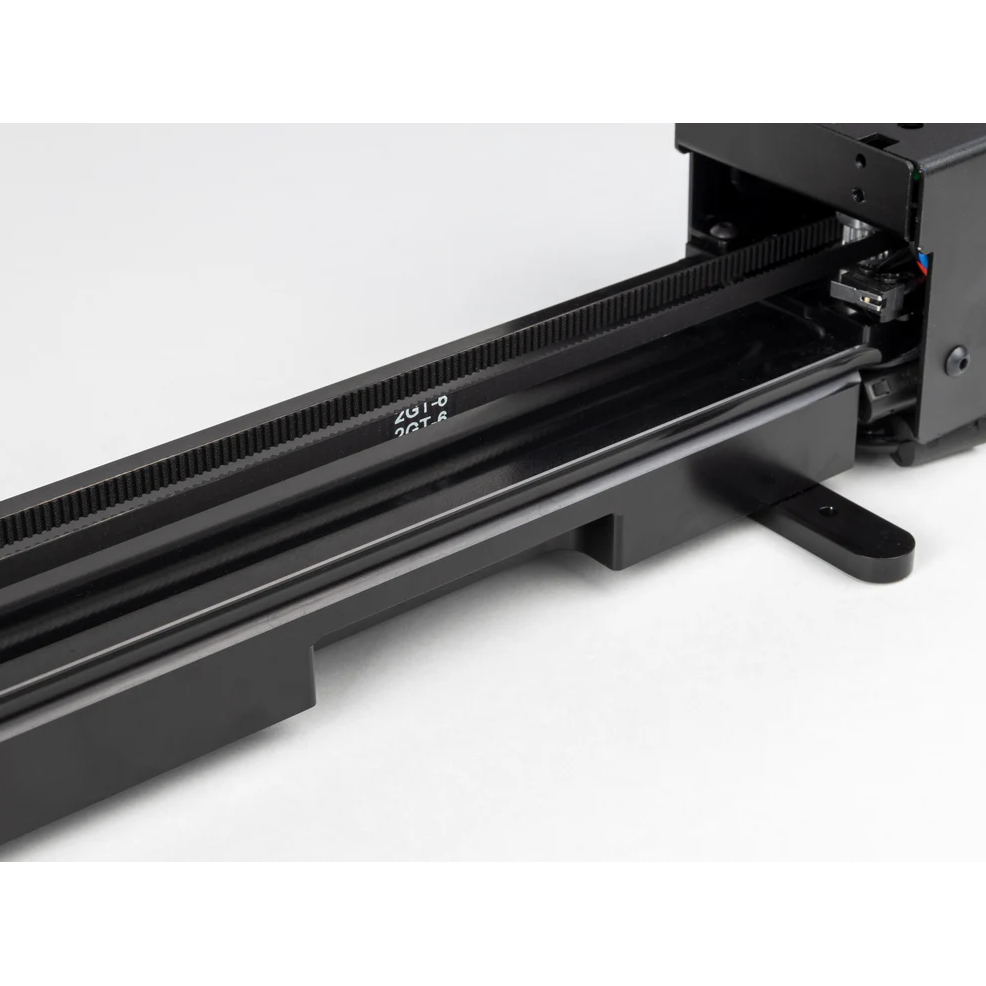

- Central beam machined from billet 6061 aluminum with tight tolerances for increased precision and added weight for increased stability.
- Familiar software with improved experience in Inkscape, with available command-line and python interfaces.
- FCC certified.
- International Edition CE certified.
- Manufactured in New York.
Specifications:
Performance:
Usable Pen Travel (inches): X: 36” Y: 24” Z: 2.36”
Usable Pen Travel (mm): X: 914.4mm Y: 609.6mm Z: 60mm
Vertical Pen Travel: 60mm
Maximum XYZ Travel Speed: 15 m/minute
Maximum XYZ Travel Speed (Pen-Up Rapid): 40 m/minute
Native XY Resolution: 0.0125mm (.0005”)
Reproducibility (XY): Typically better than 0.004 inches (0.1mm) at low speeds.
Maximum Paper Size: 29 × 43 inches (73.66 × 109.22cm)
Maximum Material Thickness: 1 inch (25.4mm)
Physical:

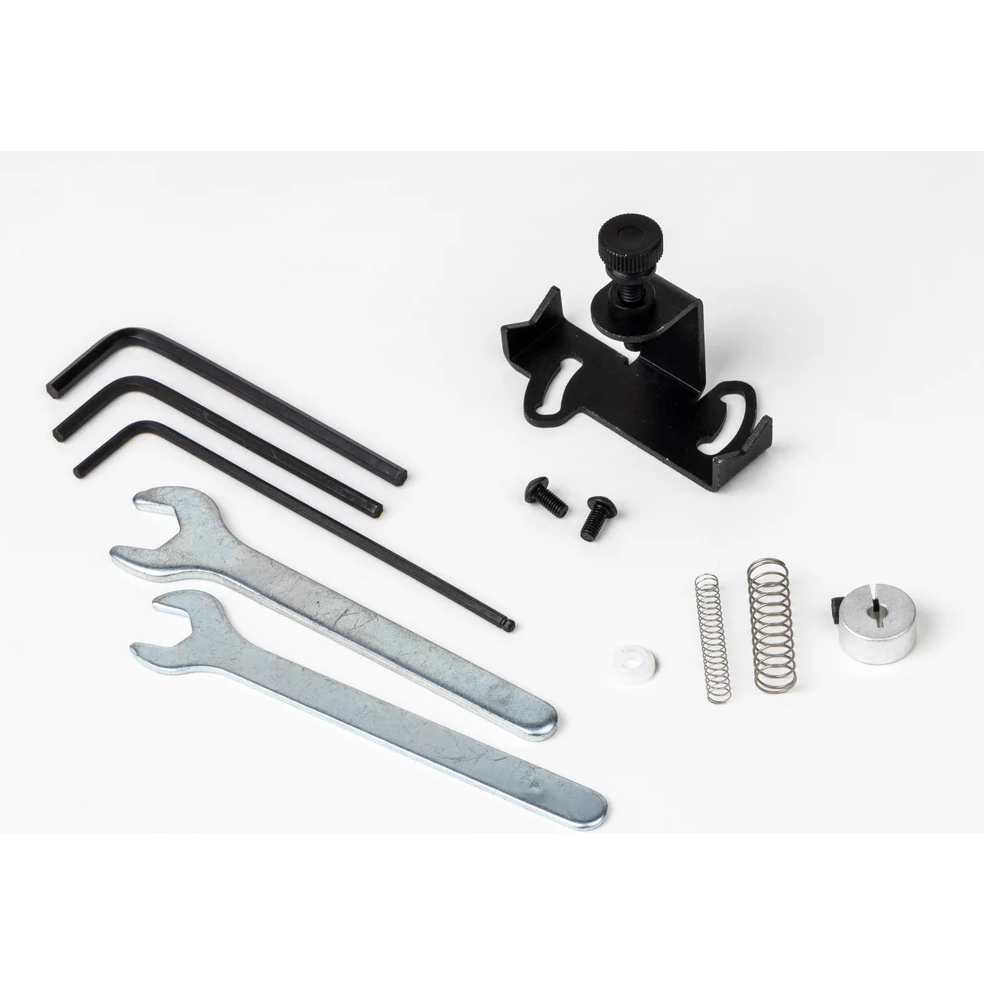

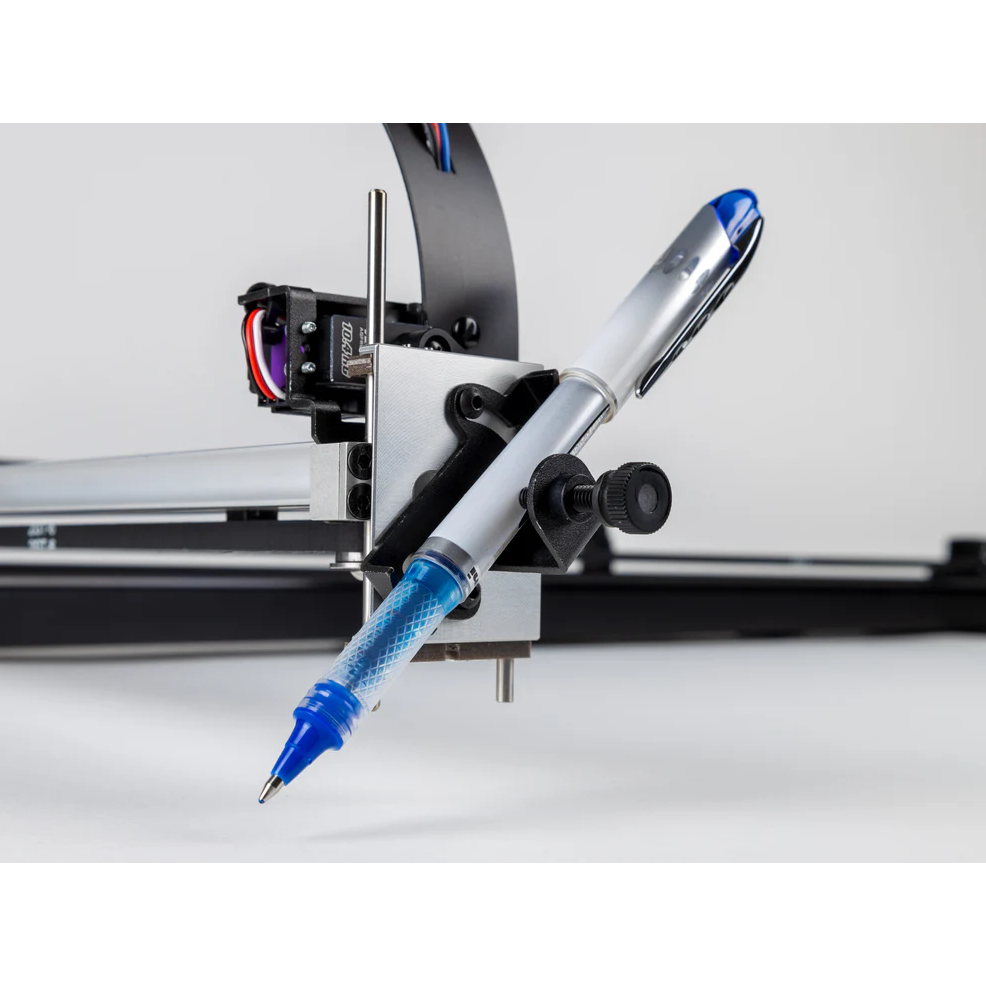

Included Pen Clip: Holds pens and drawing instruments up to 5/8" (16mm) diameter.
Tool Compatibility: Supports Bantam Tools Cross-Platform Tool Holders
Maximum Height: 279.6mm (11.0”)
Footprint / Overall Dimensions: 864mm (34.0”) × 1215.7mm (47.86”)
Physical Weight: 36.7 lb.
Software:
Compatible with Mac, Windows, and Linux.
Driven directly from within Inkscape,
using the Bantam Tools NextDraw™ software.
Programming is not required
but additional programming interfaces are available.
