Photocentric HighTemp DL400 Daylight Resin

  • Vendor
    Sale price
    Regular price
    Unit price
    Free Shipping + No Sales Tax* I code: | Ends:
    Shipping calculated at checkout.


    Estimated Arrival: Between Jun 07 and Jun 11. *ETA to USA Only

    Shipping & Returns: Free Shipping [Continental USA Only]. All The Time. On all orders.

    Why Buy From Paradigm3D

    Backordered until Feb 2, 2023

    HighTemp DL400 is the first Photocentric temperature resistant resin possessing superior properties of both strength and stiffness. It can handle impact, compression, fatigue, high temperatures and moisture without bending or deforming. Photocentric’s HighTemp DL400 can be used for quick printing applications with an impressive layer thickness of 350 μm.

    Compatible Printers:
    LC Magna

    Best Used for:
    • Hot fluid and gas manifolds
    • Molds and inserts
    • Heat resistant housings and fixtures
    • Outdoor applications

    *Tensile Modulus: 4000 MPa [ASTM D638]
    *Ultimate Tensile Strength: 80 MPa [ASTM D638]
    *Elongation at break: 4% [ASTM D638]
    *Flexural Strength: 109 MPa [ASTM D790]
    *Flexural Modulus: 3300 MPa [ASTM D790]
    *Impact Strength Notched Izod: 15.6 J/m [ASTM D256]
    *Impact Strength Notched Izod: 3.1 kJ/m2 [ISO 180]
    *Hardness: 95 Shore D [ASTM D2240]
    *Heat Deflection Temperature: 446 °F [ASTM D648 (0.455 MPa)]
    *Water Absorption (Short Term): 0.35% [ASTM D570]
    Viscosity: 650 cPs [At 25°C Brookfield spindle 3]
    Density: 1.10 g/cm3
    Storage: 10<T>50°C
    Color: Amber
    Available Size: 5kg/11 lbs (∼5 L)
    *Cytotoxicity: Passed [ISO 10993-5]

    *Mechanical properties stated based on fully cured material.


    • Temperature resistant (Heat Deflection Temperature of 446 °F)
    • Excellent long-lasting performance under heat and stress
    • Quick and fast prototyping 350 μm layer
    • Simulating the strength and stiffness of glass filled Nylon 6
    • Smooth surface finish and ability to print fine details
    • Minimal shrinkage

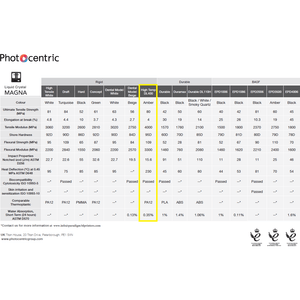

    Photocentric High-Temp DL400 Daylight Resin-Technical Data Sheet
