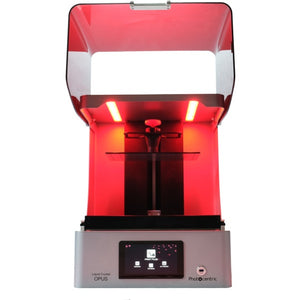

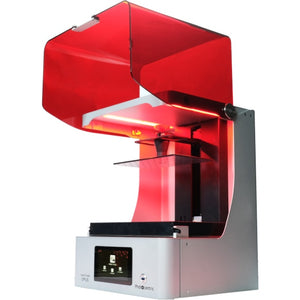

Photocentric LC Opus Resin 3D Printer

  • Vendor
    Photocentric
    Sale price
    $8,815.00
    Regular price
    $8,815.00
    Unit price
    per
    Free Shipping + No Sales Tax* I code: | Ends:
    Shipping calculated at checkout.

    Availability:

    Estimated Arrival: Between Oct 01 and Oct 05. *ETA to USA Only

    Shipping & Returns: Free Shipping [Continental USA Only]. All The Time. On all orders.

    Why Buy From Paradigm3D

    From the inventors of LCD 3D Printing, the Photocentric LC Opus delivers fast, highly accurate prints suitable for a huge variety of industries and applications. With its rugged construction, the LC Opus has been designed to provide reliable and repeatable performance. Equally at home in a dental laboratory or engineering workshop, its intuitive and simple operation makes it perfect for beginners and experienced users alike.

    Construction
    • Rugged aluminum construction with solvent resistant paint.
    • 4k Monochrome 14″ screen(3840 x 2160px with a pixel density of 314.7 PPI)
    • Very flat, high tolerance glass.
    • Platform print arm constructed from single billet of aerospace grade aluminum.
    • Tough annealed red plastic hood is resistant to cracking from chemical exposure.
    • Precision engineered components including THK linear rails from Japan.
    • Trinamic motor drivers deliver extremely quiet and robust performance.
    • Ultra-quiet PWM fans provide efficient cooling for high powered LEDs.
    • Vibration damping rubber feet on base.


    Specifications
    Build volume: 310 x 174 x 220mm (12.2 x 6.9 x 7.9″).
    Molding Technology/Resin Type:  LCD screen 14″ monochrome 4k
    Light output wavelength: 405nm
    Print layer thickness: 25, 50 and 100μm. Layer thickness of >100μm is dependent upon resin properties.
    Print Speed: 18mm per hour.
    Cure Speed: 2-6 sec/layer at 50μm.
    Light Output intensity - LCD screen: 5mW/cm²
    Resolution: XY resolution of 81μm provides scanned data accuracy of ≥95% at <100μm and ≥70% at <50 μm
    Software: Equipped with our free intuitive Photocentric STUDIO (software license)
    ConnectivityWi-Fi, Ethernet, USB 3.0 for fast file transfer
    Weight: 38kg (83.8 lbs)

    *Photocentric’s patented peel release technology - ‘Vat-Lift’

    Features

    • Calibrated in the factory enabling quick set-up and installation on site.
    • Large capacitive touch 7-inch screen.
    • Integrated Photocentric control system for optimum performance and in-field updates.
    • New vat with self-cleaning software option.
    • Easy clean platform and chassis featuring robust double-sealed vat construction with practical carry handles.
    • Screen cartridge with a tight tolerance facilitating easy replacement and easy servicing.
    • Interchangeable platform options without recalibration - easier to handle, wash, homing simplified.
    •  Fast-capable of printing 22 flat dental arches in 45 mins at 100μm.
    •  A modified screen eliminates UV degradation ensuring a long screen life.

    *Free One Year Manufacturer Warranty
