Availability:
Estimated Arrival: Between Jun 07 and Jun 11. *ETA to USA Only
Shipping & Returns: Free Shipping [Continental USA Only]. All The Time. On all orders.

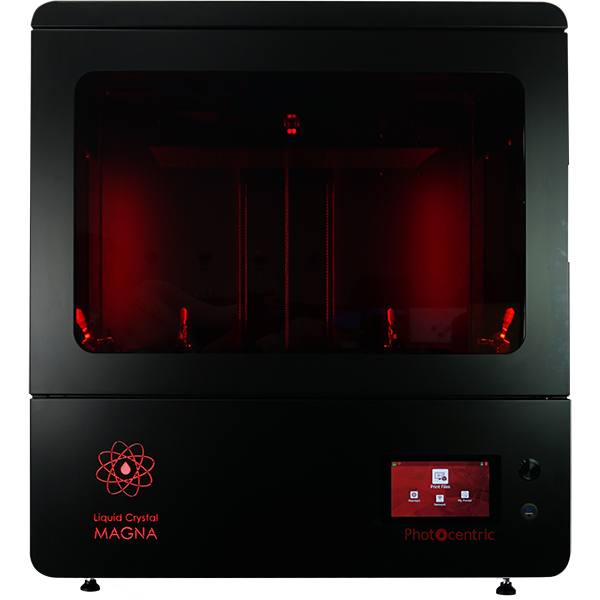

From the inventors of LCD 3D Printing, the Photocentric LC Magna builds on the success of the original delivering fast, highly accurate prints suitable for a huge variety of industries and applications. The largest LCD 3D printer worldwide the versatility of the new LC Magna supercharges product design enabling you to move from prototyping to production in hours. Whether it’s small batch, on-demand or full production the LC Magna 3D Printer is your perfect partner to consistently deliver accurate end-use parts at scale. A simple ‘plug and play’ operation complemented with Photocentric’s intuitive STUDIO software, means that LC Magna is suitable for both experienced and novice users in a wide variety of applications.

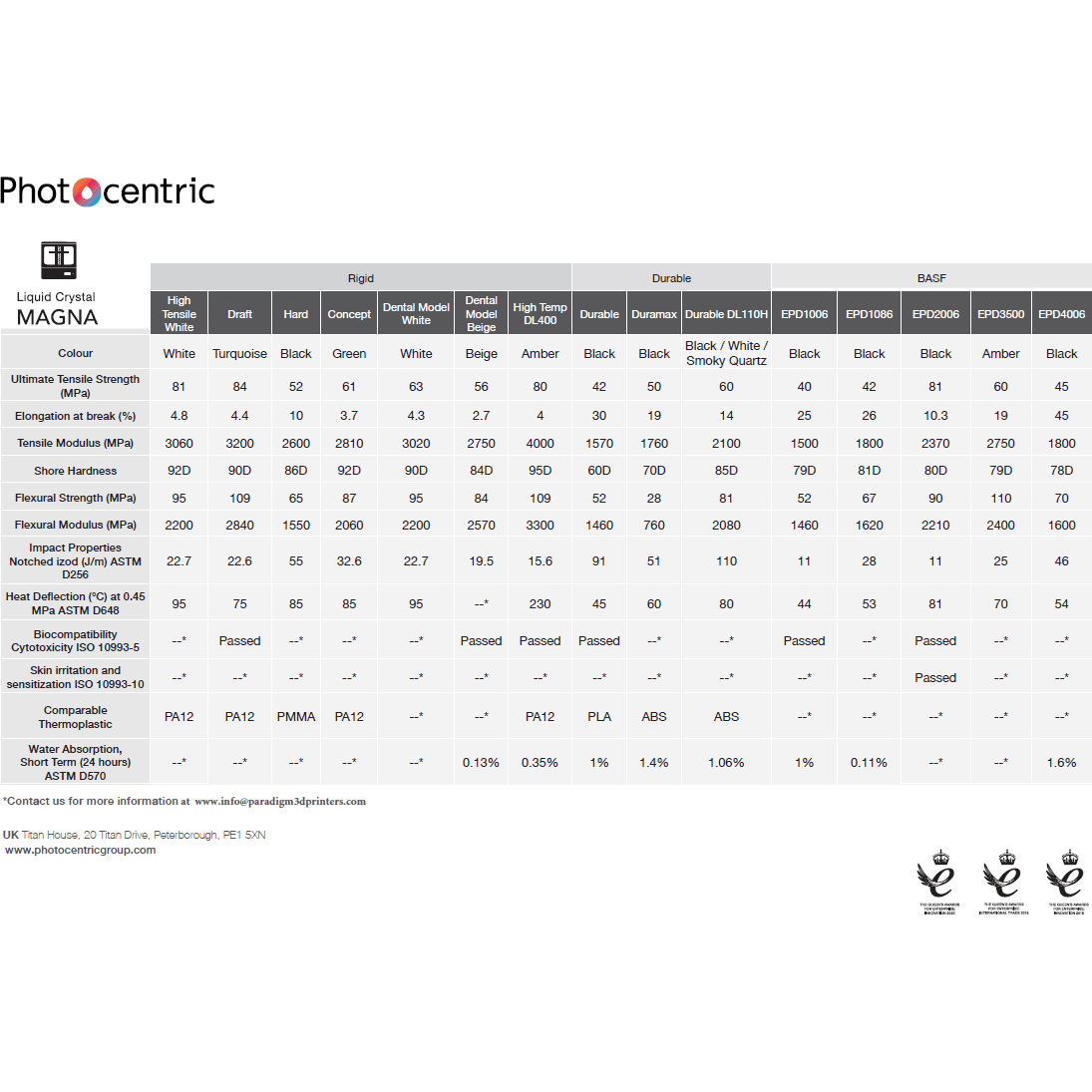

Compatible Resins: Daylight Resins (only)
Construction
- Rugged steel construction with solvent resistant paint.
- 4k screen(3840 x 2160px with a pixel density of 314.7 PPI)
- Incredibly flat, high tolerance glass.
- Aluminum platform with Teflon coating.
- Precision engineered components including HIWIN linear rails.
- Trinamic motor drivers deliver extremely quiet and robust performance.
Specifications

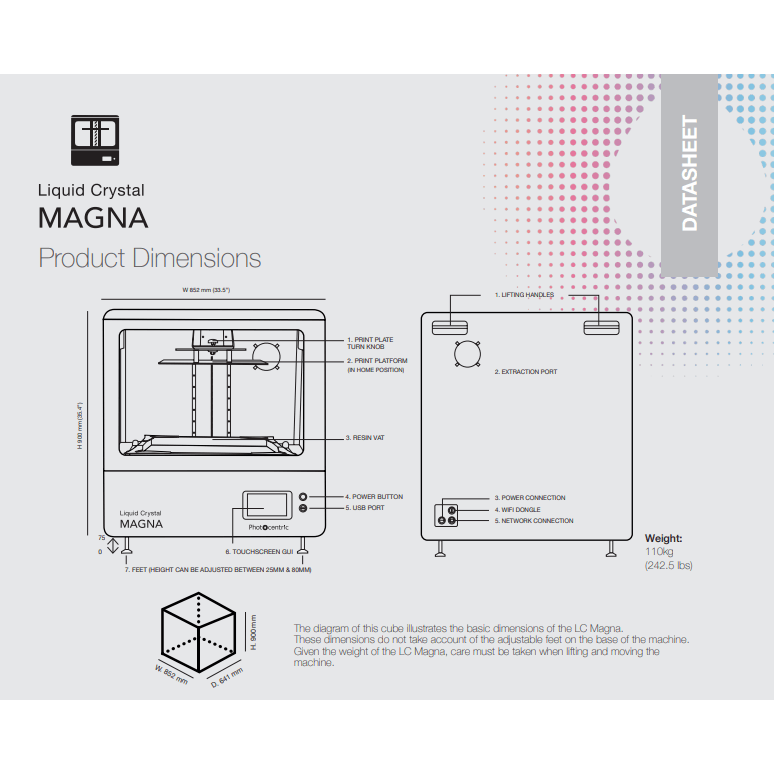

Build Volume: 510x280x350mm [21.1x11x13.8"]
Molding Technology/Resin Type: LCD screen 23.8″ [3840 x 2160 px] monochrome 4k
Print Layer Thickness: 25, 50 and 100µm [Layer thickness of >100µm is dependent upon resin properties.]
Print Speed: 16mm per hour (0.62’’ per hour).
Cure Speed: 2 seconds per layer at 100um
Light output wavelength: 460nm
Software: Equipped with our free STUDIO software license
Connectivity: Wi-Fi, Ethernet, or USB 3.0 for fast file transfer
Weight: 110Kg (242.5lbs)
Power input: 110-240 VAC
Features
- Calibrated in the factory enabling quick set-up and installation on site.
- Large capacitive touch 7-inch screen.
- Integrated Photocentric control system for optimum performance and in-field updates.
- Easy clean platform and chassis featuring robust double-sealed vat construction with practical carry handles.
