Multiple Laser Module Options Available. Bundle includes Y-Axis Rotary Chuck Roller!
The Ortur Laser Master 2 Pro S2 is everything you love about from the original Laser Master 2 Pro with new and improved 2nd generation laser module heads and more! Including updated software, 1.5 series firmware, 32- bit motherboard, 3 safety functions plus 2 additional flame detector and emergency stop safety features, smaller fixed focus laser spot, enhanced greyscale more power 24V and faster engraving speed. Replacement parts covered under 1 year warranty. Assembly is quick and easy.
Laser Engraver
Safety Features:
Active Position Protection
Exposure Duration Detection and Limitation
Laser Beam Safety Guard
Flame Detector
Emergency Stop Button
Enhanced Gray Scale
2nd Compressed Focal
Specifications:
Engraving area: 400mm x 400m large engraving area
Material: Full Metal Construction (Aluminum+ Power Coated Steel)
Motherboard: OLM-PRO-V10 Motherboard – 32Bits MCU
Firmware: OLF-V 1.5 Firmware
OS of Upper Computer: Win XP, Win 7, Win 8, Win 10 (LaserGRBL) Mac and Linux (LightBurn)
Laser Module Options:
- LU2-10A Laser Module is true 10W output power. Fastest engraving and cutting up to 30mm acrylic and 20mm pine board
- LU2-4-LF Long Focus Laser Module (Real Luminous Power: 4,500-5,500mw) (better for cutting) *recommended to use with air compressor for best results. Air compressor sold separately.
- LU2-4-SF Short Focus Laser Module (Real Luminous Power: 4,500-5,500mw) (better for engraving hard materials)
| Electrical Power | Input | Output (from Laser Module) |
| LU2-10A | 40W | 10W |
| LU2-4[LF] | 20W | 5W |
| LU2-4[SF] | 20W | 5W |
Power of Laser Engraver: 24V
Fixed Focus: Yes
Default Focal Length: 50mm(from the heat sink to the object)
Input Format: JPG, JPEG, PNG, BMP, SVG, etc.
Engraving Speed: 0-15,000mm/min
Software:
-LaserGrbl: (PC-Free)
-LightBurn: (PC/MAC-30 Day Free Trial)
Additional Specs:
Motors NEMA 17 Stepper Motors
Mechanical Precision Y:12.5um，X:12.5um
Pixel Accuracy: Adjustable(Default: 300 DP; roughly0.81um Pixel Accuracy)

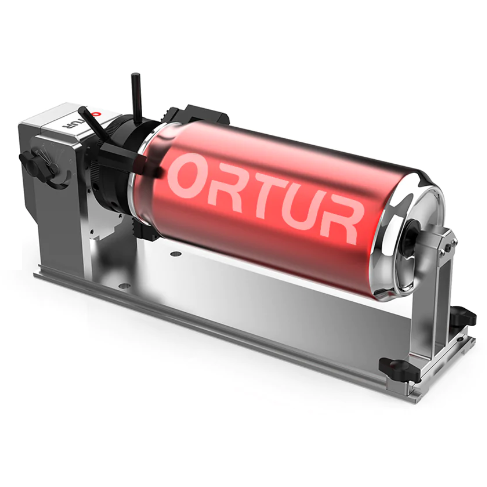

Y-Axis Rotary Roller
Specifications:
Total Weight: NW:0.95kg (2lbs)/ GW:1.35kg (3lbs)
Product Size: 129*184*81mm (5in x 3.3in x 3.2in)
Material: Aluminum + Acrylic
Features:
Laser Cutter/Engraver
Active Position Protection
Exposure Duration Detection and Limitation
Laser Beam Safety Guard
Flame Detector
Emergency Stop Button
Additional Features:
upgraded timing belt, and addition of front and rear baffles to engrave conical object
*Free One Year Warranty Against Manufacturing Defect.
