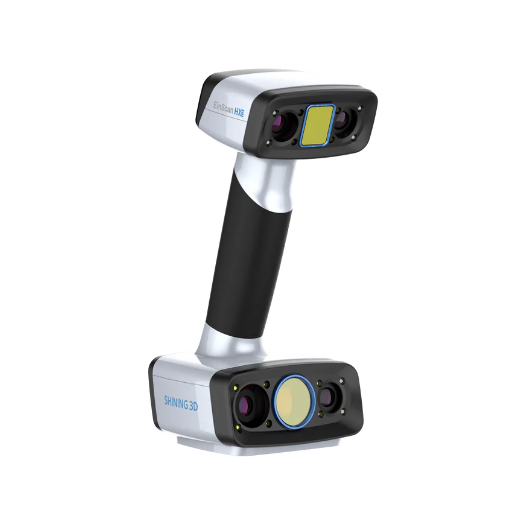

The EinScan HX2 enhances its predecessor's features, now boosting 13 crossed blue laser lines for more detailed scanning and an increased frame rate of 120 FPS for faster scanning.
-
Hybrid Blue Laser & LED Light -The EinScan HX2 continues the innovative integration of hybrid blue laser and LED light technology, enhancing material adaptability for a broader range of applications. The advanced blue laser captures complete data from black and reflective surfaces with exceptional surface and environmental adaptability, now with 13 laser lines for more fast and detailed scans. The efficient LED light scanning requires no markers, enabling rapid 3D scanning without preparation
-
High Efficiency- The EinScan HX2's laser scan mode reaches 1,600,000 points/s and 120 FPS, enabling rapid scans for reverse engineering, CAD/CAM, and 3D printing. It scans most objects in minutes, ensuring superior efficiency and productivity in all your 3D scanning projects.
-
Full Color-With a built-in color camera, it supports full-color texture capturing and tracking in rapid scan mode.
-
High Accuracy & Detail- The EinScan HX2 meets the rigorous demands of industrial applications for reverse engineering and precise measurement. Minimum point distance of 0.05 mm, Accuracy up to 0.04 mm under laser mode
-
Portable & Easy Operation- The EinScan HX2 excels in portability and ease of use with its ergonomic design and lightweight build at just 745g. Perfect for both beginners and professionals, its plug-and-play functionality and user-friendly software make 3D scanning efficient and comfortable, anywhere you go
- ExScan HX Software (included) -Your EinScan HX2 comes with access to our powerful and continuously updated EinScan software. Scan as much as you want, all year long, with no hidden fees or extra costs. Features include:
-
- Step-by Step Guidance- EXScan HX software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.
- Smart Data Process- EXScan HX software is equipped with intelligent algorithms that can process and optimize scanning data more efficiently, and output more ideal results.
- Regular Updates-Ensure your software stays up to date with regular updates. Stay in the loop with updates, which collaborate to enhance your hardware performance.
- Supports Multi-Language-In addition to English, our software supports German, Japanese, Korean, Russian, French, Spanish, and Traditional Chinese. This list is continuously being updated
Specifications
Scan Mode | Rapid Scan | Laser Scan | |
---|---|---|---|
Scan Accuracy | Up to 0.05mm | Up to 0.04mm | |
Volumetric Accuracy* | 0.05+0.1mm/m | 0.04+0.06mm/m | |
Scan Speed |
1,200,000 points/s 20FPS |
1,600,000 points/s
55FPS |
|
Camera Frame Rate | 20FPS | 120FPS | |
Align Mode | Feature Alignment、Markers Alignment、Texture Alignment、Hybrid Alignment | Markers Alignment | |
Working Distance | 470mm | 470mm | |
Depth of Field | 200mm-700mm | 350mm-610mm | |
Max FOV | 420mm*440mm | 380mm*400mm | |
Point Distance | 0.25mm-3mm | 0.05mm-3mm | |
Light Source | Blue LED | 13 Blue Laser Crosses | |
Safety | Eye-safe | Class I(Eye-safe) | |
Built-in Color Camera | Yes | ||
Texture Scan | Yes | No | |
Connection Standard | USB3.0 | ||
Output Formats | OBJ;STL;ASC;PLY;P3;3MF | ||
Dimensions | 108mmx110mmx237mm | ||
Weight | 745g | ||
Operating Temperature Range | 0-40℃ | ||
Operating Humidity Range | 10-90% | ||
Certifications | CE,FCC,ROHS,WEEE,KC | ||
Software Compatibility |
EXScan HX Software (included), Geomagic Control X, Geomagic Design X, BlueStar Mapping |
||
Recommended Configuration | OS:Win10,64 bit;Graphics card: NVIDIA GTX/RTX series cards,higher or equal to GTX 1080;Video memory:≥4G;Processor:I7-8700;Memory:≥32GB |
*Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm(rapid scan)/0.06mm(laser scan) per 100cm.The conclusion is obtained by measuring the center of sphere under marker alignment.
