Shining3D EinScan HX2 3D Scanner ExModel Bundle
Shining3D EinScan HX2 3D Scanner ExModel Bundle
Shining3D EinScan HX2 3D Scanner ExModel Bundle
Shining3D EinScan HX2 3D Scanner ExModel Bundle
Shining3D EinScan HX2 3D Scanner ExModel Bundle
Shining3D EinScan HX2 3D Scanner ExModel Bundle
Shining3D EinScan HX2 3D Scanner ExModel Bundle
Shining3D EinScan HX2 3D Scanner ExModel Bundle
Shining3D EinScan HX2 3D Scanner ExModel Bundle
Shining3D EinScan HX2 3D Scanner ExModel Bundle

Shining3D EinScan HX2 3D Scanner ExModel Bundle

  • Vendor
    Shining3D
    Sale price
    $10,494.00
    Regular price
    $10,494.00
    Unit price
    per
    Free Shipping + No Sales Tax* (exclusions apply) | Ends:
    Shipping calculated at checkout.

    Availability:

    Estimated Arrival: Between May 07 and May 11. *ETA to USA Only

    Shipping & Returns: Free Shipping [Continental USA Only]. All The Time. On all orders.

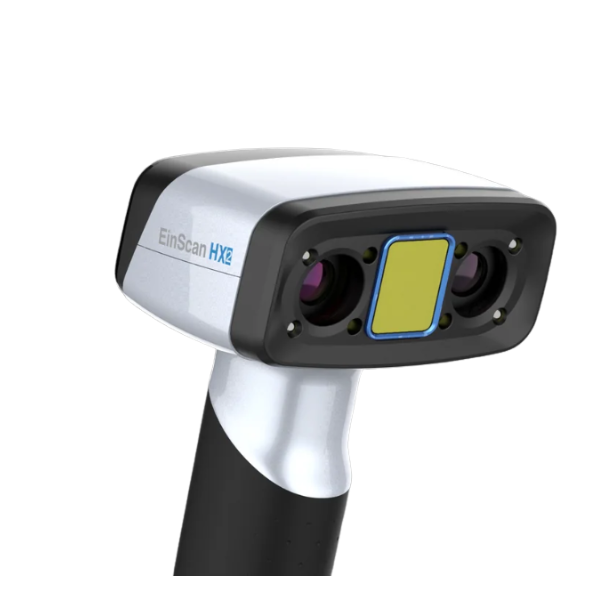

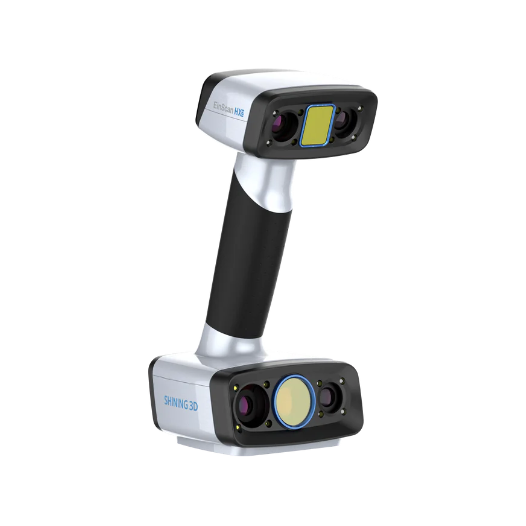

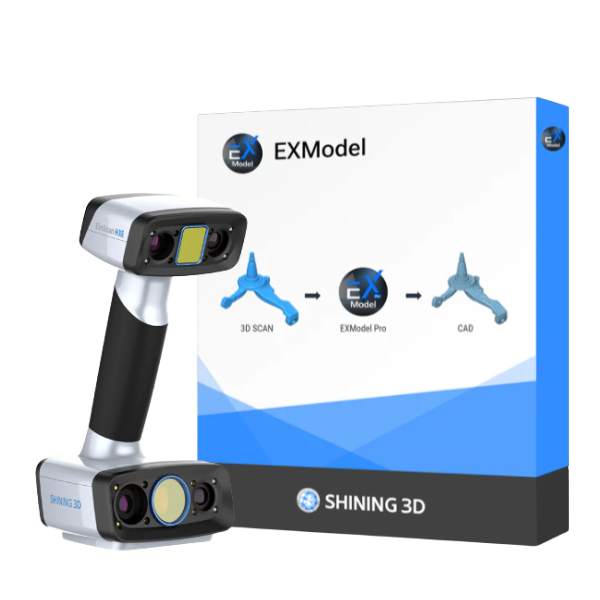

    EinScan HX2 ExModel Bundle give this hybrid light source 3D scanner multiple options including bridging 3D scan mesh and CAD (with ExModel License) or major reverse engineering, and CAD capabilities (with ExModel Pro License). The EinScan HX2 enhances its predecessor's features, now boosting 13 crossed blue laser lines for more detailed scanning and an increased frame rate of 120 FPS for faster scanning.

    • Hybrid Blue Laser & LED Light -The EinScan HX2 continues the innovative integration of hybrid blue laser and LED light technology, enhancing material adaptability for a broader range of applications. The advanced blue laser captures complete data from black and reflective surfaces with exceptional surface and environmental adaptability, now with 13 laser lines for more fast and detailed scans. The efficient LED light scanning requires no markers, enabling rapid 3D scanning without preparation

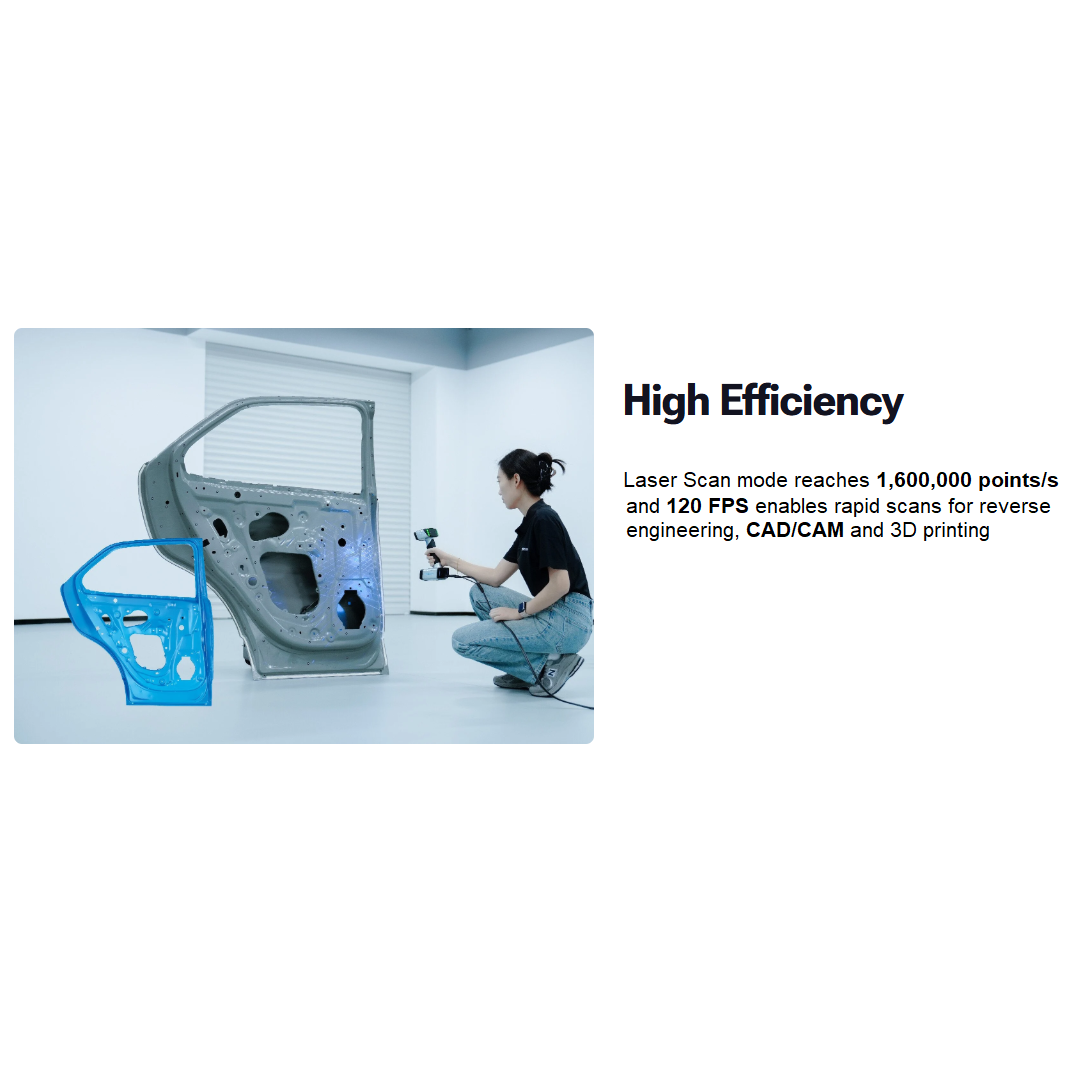

    • High Efficiency- The EinScan HX2's laser scan mode reaches 1,600,000 points/s and 120 FPS, enabling rapid scans for reverse engineering, CAD/CAM, and 3D printing. It scans most objects in minutes, ensuring superior efficiency and productivity in all your 3D scanning projects.

    • Full Color-With a built-in color camera, it supports full-color texture capturing and tracking in rapid scan mode.

    • High Accuracy & Detail- The EinScan HX2 meets the rigorous demands of industrial applications for reverse engineering and precise measurement. Minimum point distance of 0.05 mm, Accuracy up to 0.04 mm under laser mode

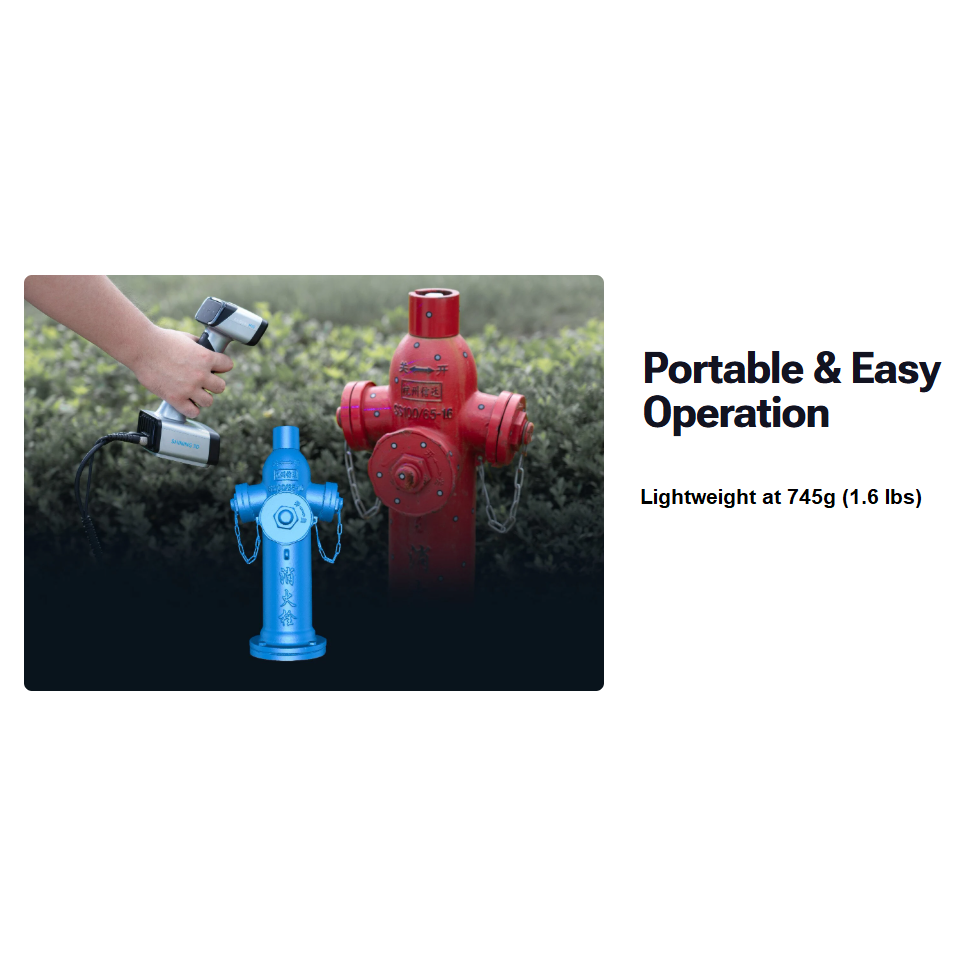

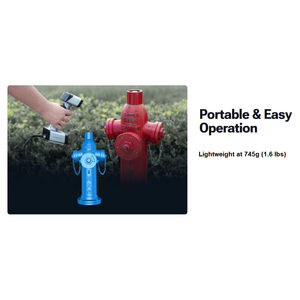

    • Portable & Easy Operation- The EinScan HX2 excels in portability and ease of use with its ergonomic design and lightweight build at just 745g. Perfect for both beginners and professionals, its plug-and-play functionality and user-friendly software make 3D scanning efficient and comfortable, anywhere you go

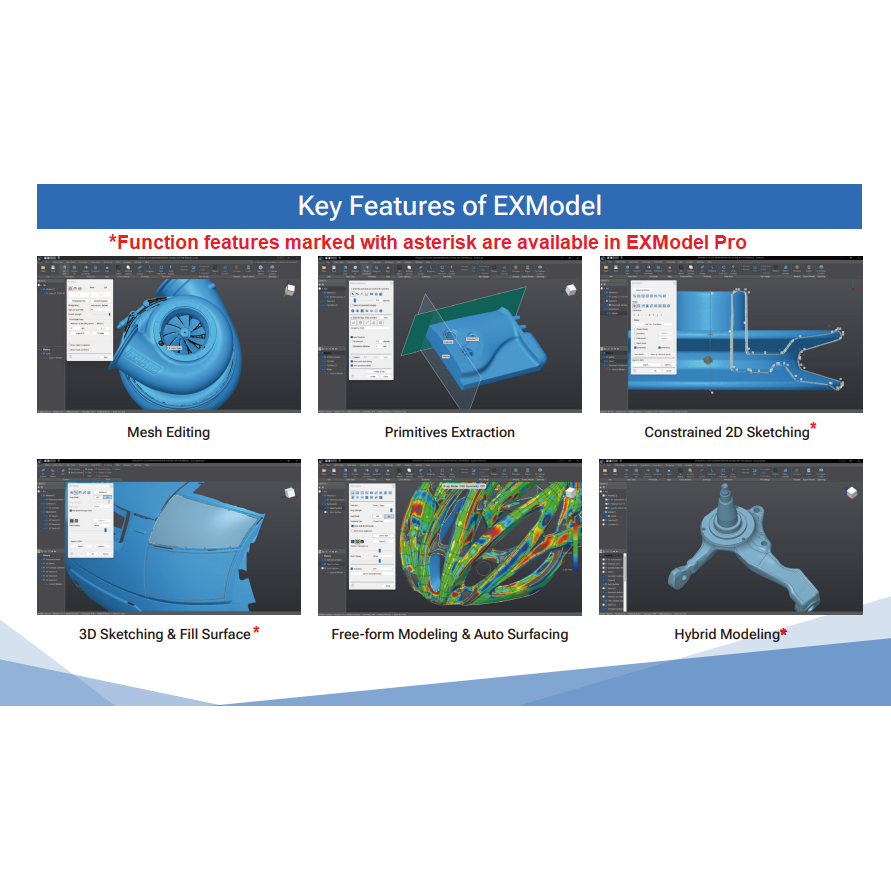

    • NEW ExModel Software (included, multiple options available) -EXModel is a powerful bridge that simplifies CAD modeling from 3D scanning to manufacturing. It provides a comprehensive set of tools that enable you to create professional-grade CAD digital models that are compatible with your CAD software. Features include:
      1. Effortless Mesh Processing- . EXModel seamlessly extracts all necessary elements, bridging the gap between 3D scanning and CAD design, ensuring a smooth transition from scan to design.
      2. Precision CAD Creation- Craft high-quality CAD designs directly with
        EXModel's intuitive free-form and parametric modeling tools. With an intuitive guide at your fingertips, unleash your creativity and bring your
        ideas to life with unparalleled accuracy.
      3. Enhanced Data Utilization-. Elevate customer experiences by
        effortlessly repairing mesh and exporting aligned and booleaned data for seamless 3D printing, speeding up manufacturing timelines and ensuring
        precision in every print.
      4. Cost-Effective Solution-As the most cost-effective mesh processing
        and reverse engineering all-in-one solution, it empowers you to simplify models for simulation, edit and repair data, and transform physical parts into custom CAD designs—all while keeping costs low and productivity high.

    Specifications

    Scan Mode Rapid Scan Laser Scan
    Scan Accuracy Up to 0.05mm Up to 0.04mm
    Volumetric Accuracy* 0.05+0.1mm/m 0.04+0.06mm/m
    Scan Speed 1,200,000 points/s
    20FPS
    1,600,000 points/s

     55FPS


    Camera Frame Rate 20FPS 120FPS
    Align Mode Feature Alignment、Markers Alignment、Texture Alignment、Hybrid Alignment Markers Alignment
    Working Distance 470mm 470mm
    Depth of Field 200mm-700mm 350mm-610mm
    Max FOV 420mm*440mm 380mm*400mm
    Point Distance 0.25mm-3mm 0.05mm-3mm
    Light Source Blue LED 13 Blue Laser Crosses
    Safety Eye-safe Class I(Eye-safe)
    Built-in Color Camera Yes
    Texture Scan Yes No
    Connection Standard USB3.0
    Output Formats OBJ;STL;ASC;PLY;P3;3MF
    Dimensions 108mmx110mmx237mm
    Weight 745g
    Operating Temperature Range 0-40℃
    Operating Humidity Range 10-90%
    Certifications CE,FCC,ROHS,WEEE,KC
    Software Compatibility

    EXModel (included), Geomagic Control X, Geomagic Design X, BlueStar Mapping

    Recommended Configuration OS:Win10,64 bit;Graphics card: NVIDIA GTX/RTX series cards,higher or equal to GTX 1080;Video memory:≥4G;Processor:I7-8700;Memory:≥32GB

    *Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm(rapid scan)/0.06mm(laser scan) per 100cm.The conclusion is obtained by measuring the center of sphere under marker alignment.
