User-friendly design

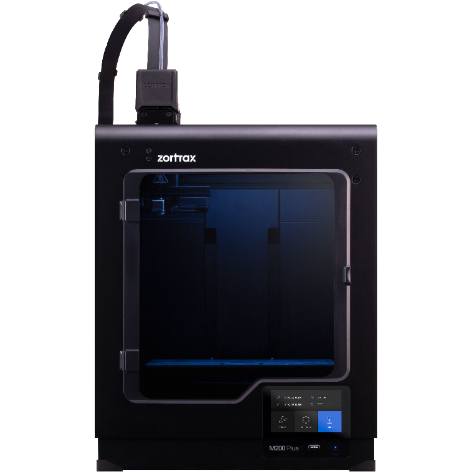

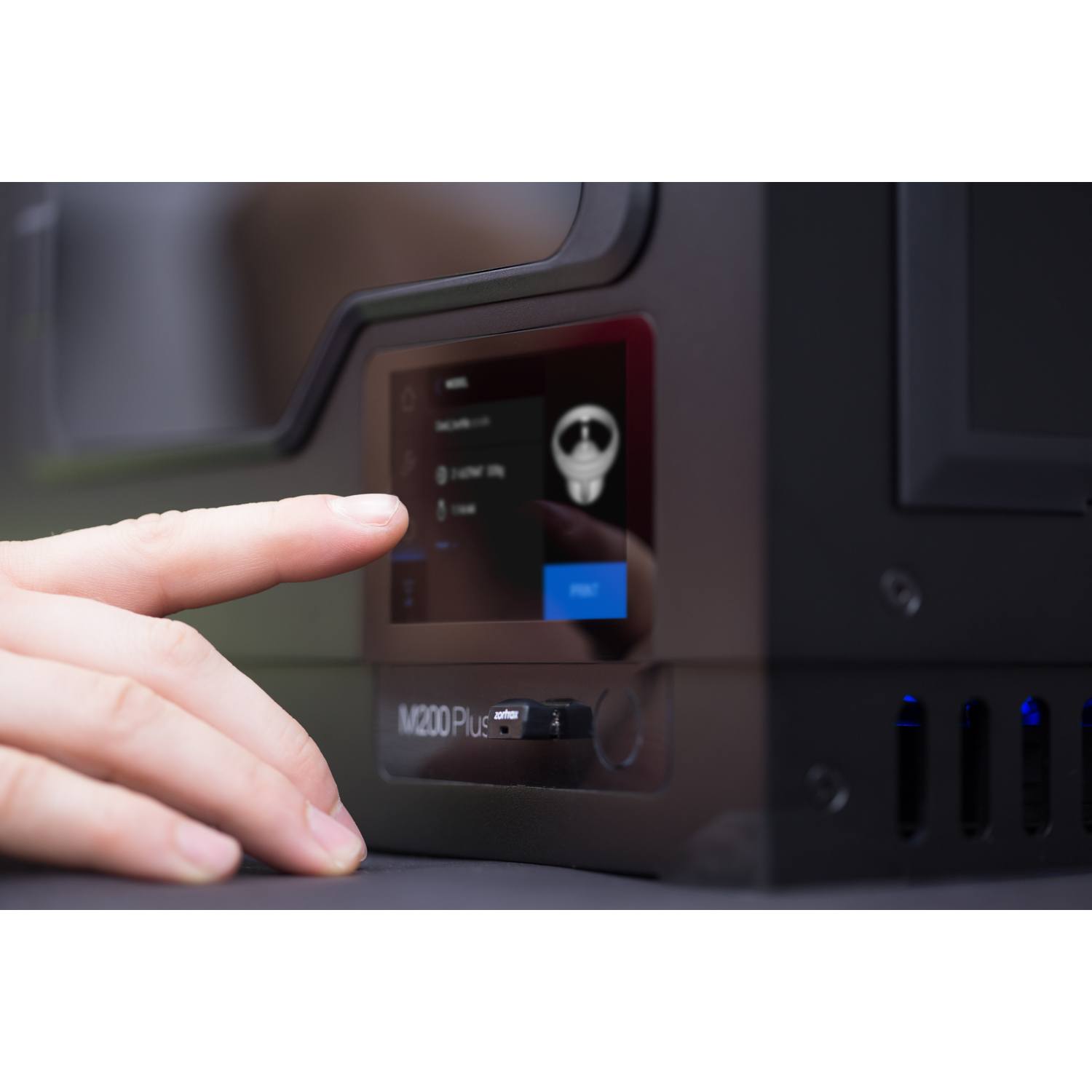

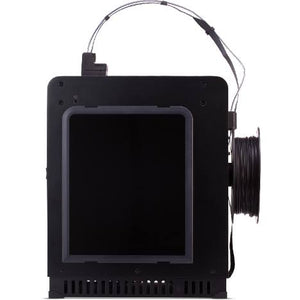

Zortrax M200 Plus is a Plug & Play 3D printer, ready to work right out of the box. It can be controlled manually via an intuitive touchscreen or remotely over Wi-Fi or Ethernet network. Previews of digital models loaded into its expandable memory are displayed on the screen to make selecting the right model easier. The interface is constantly improved with new functionalities added with firmware updates.

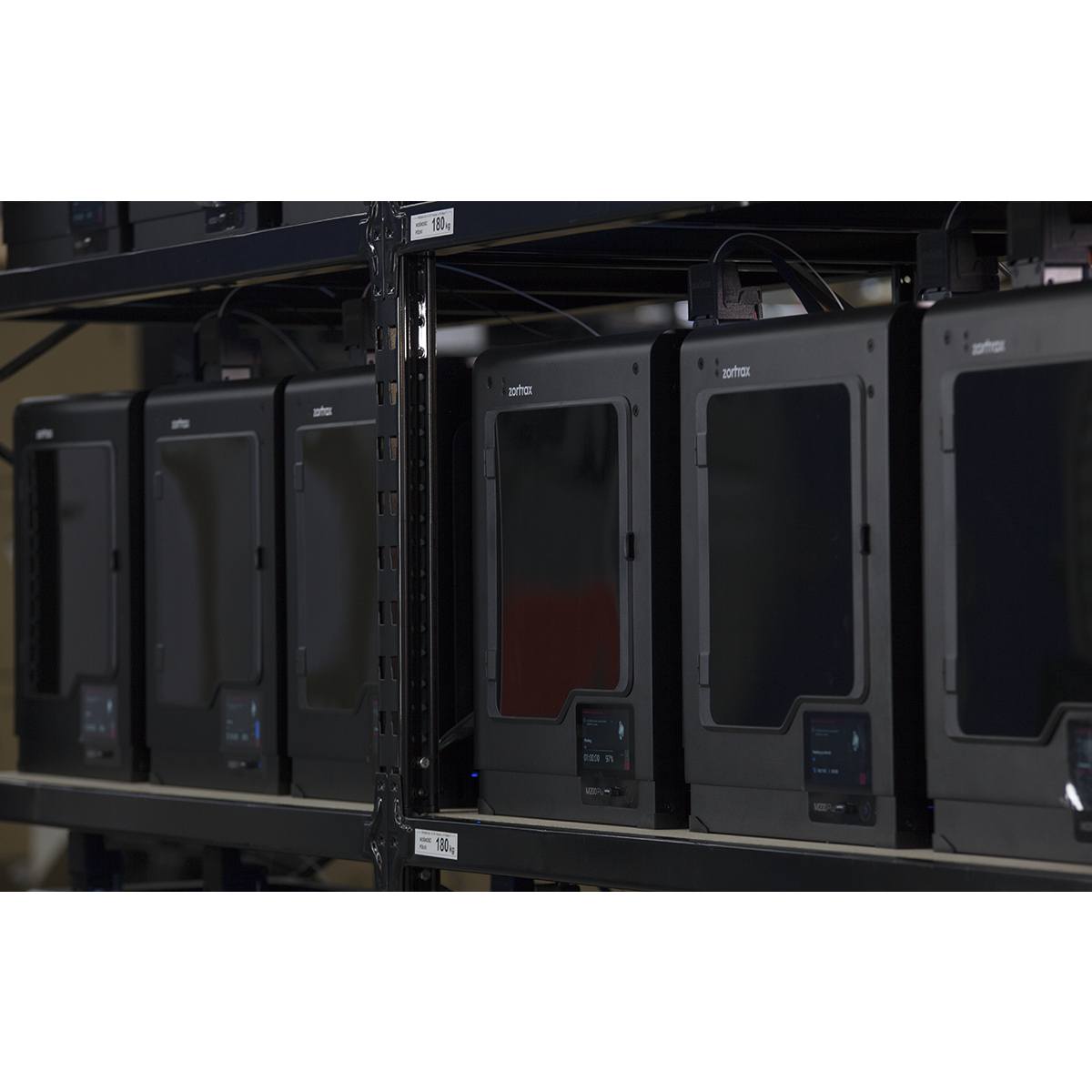

Ready for rapid manufacturing
The M200 Plus 3D printer is designed for reliable, continuous operation over long periods of time. Industrial-grade build quality minimizes maintenance costs and guarantees repeatable, dimensionally accurate results.
Specifications
Build Volume: 7.9 x 7.9 x 7.1 in (200 x 200 x 180 mm)
Material Container: Spool
Material Diameter: 1.75mm (0.069in)
Nozzle Diameter: 0.3 mm (0.012 in), 0.4 mm (0.016 in), 0.6 mm (0.024 in)
Support: Mechanically removed-printed w/same material as the model

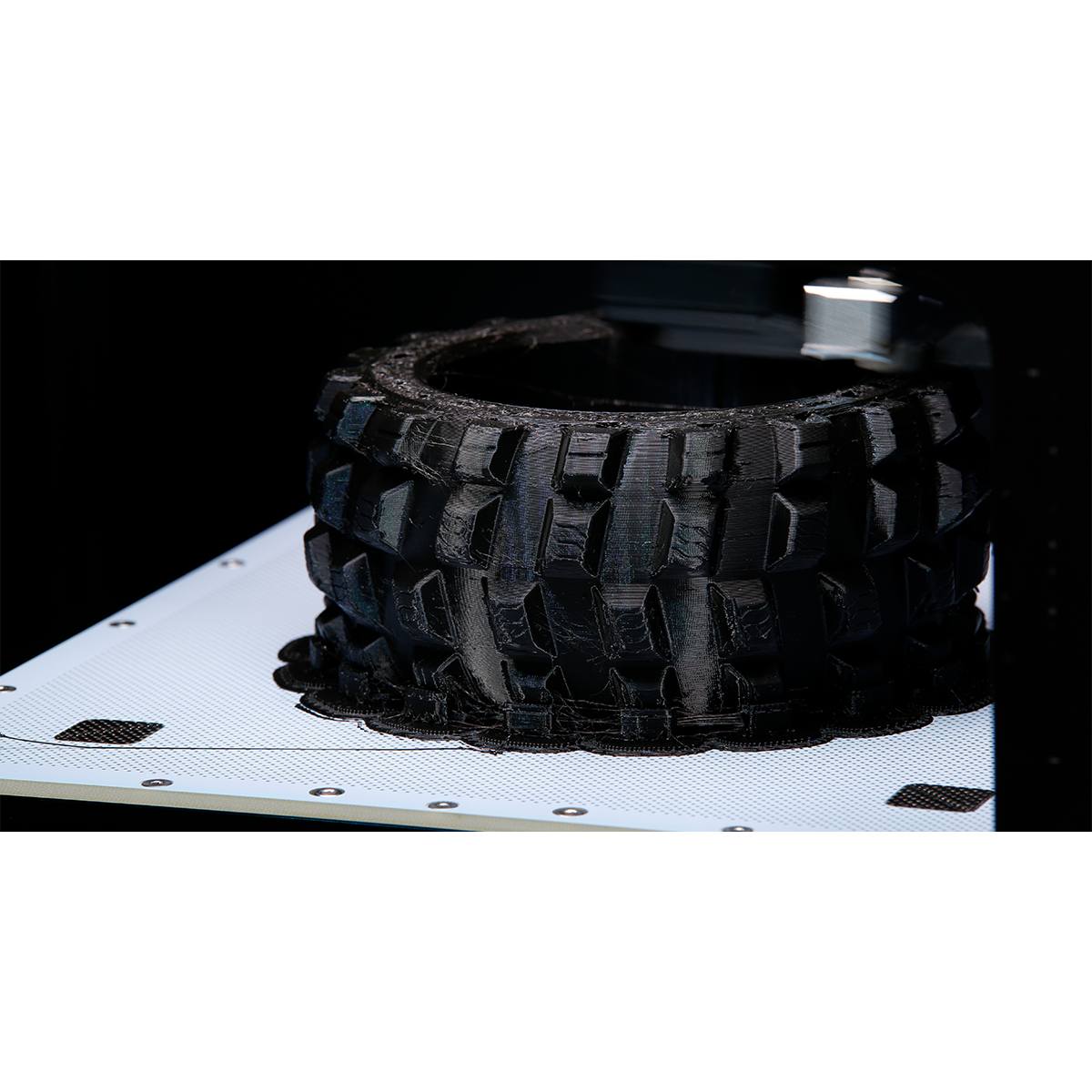

Extruder: Single (compatible with demanding materials like TPU or nylon)
Extruder Cooling System: Radial fan cooling the extruder block; two fans cooling the print
Hotend: Single, V3
Platform: Heated; perforated and glass are applicable
Material Endstop: Mechanical

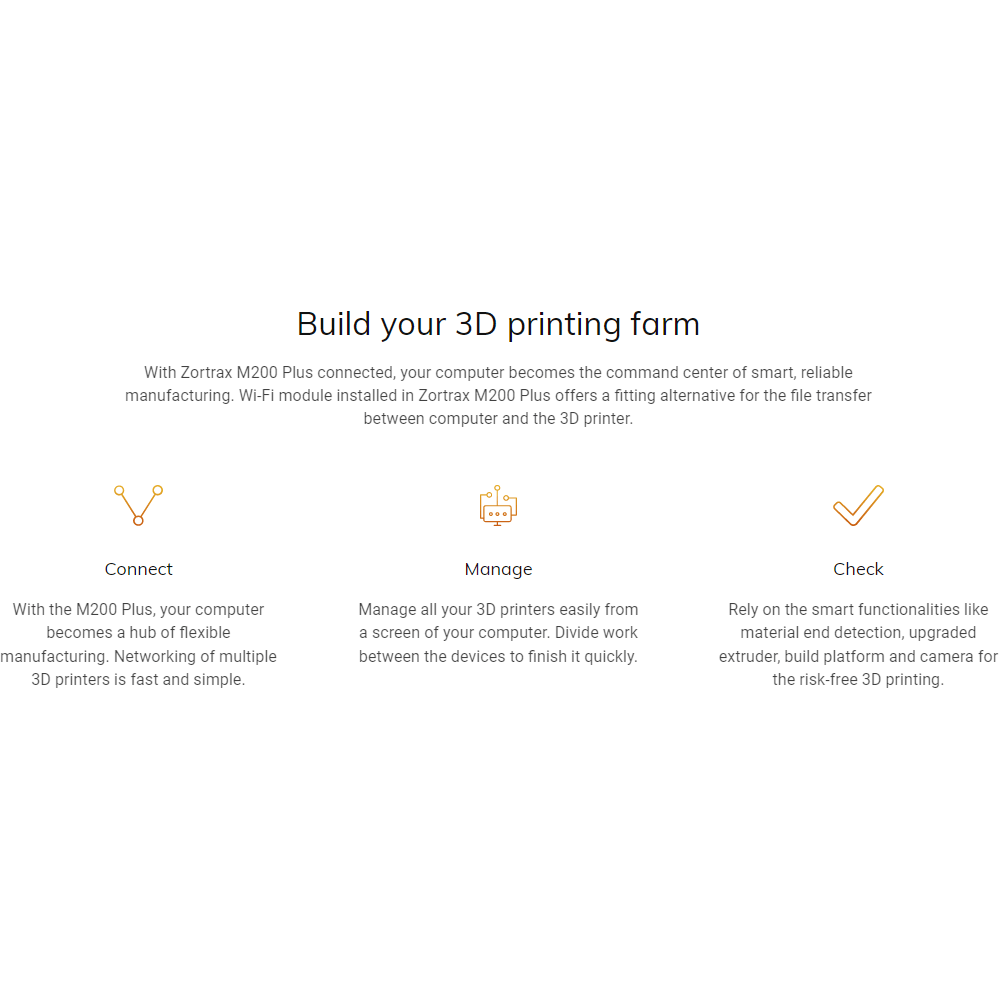

Connectivity: Wi-Fi, Ethernet, USB
Operating System: Android
Touchscreen: 4" IPS 800x480
Camera: Yes
External Materials: Applicable
Max. Printing Temperature (extruder): 290° C (554° F)
Max. Platfrom Temperature: 105° C (221° F)
Ambient Operation Tempearture: 20-30° C (68-86° F)
Storage Temperature: 0-35° C (32-95° F)
AC Input: 110 V ~ 5.9 A 50/60 Hz; 240 V ~ 2.5 A 50/60 Hz
Max. Power Consumption: 320W
Software
| Software Bundle | Z-Suite |
| Supported File Types | .stl, .obj, .dxf, .3mf, .ply |
| Supported Operating System | Mac OS Mojave and newer versions / Windows 7 and newer versions |
Printing
| Technology | LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform |
| Layer Resolution | 90-390 microns (for 0.4 mm nozzle) |
| Minimal Wall Thickness | 450 microns (for 0.4 mm nozzle) |
| Platform Leveling | Automatic measurement of platform points’ height |
What's In the Box
- 3D Printer
- Hotend V3
- Side Covers
- Z-SUITE
- Starter Kit
- Z-ULTRAT

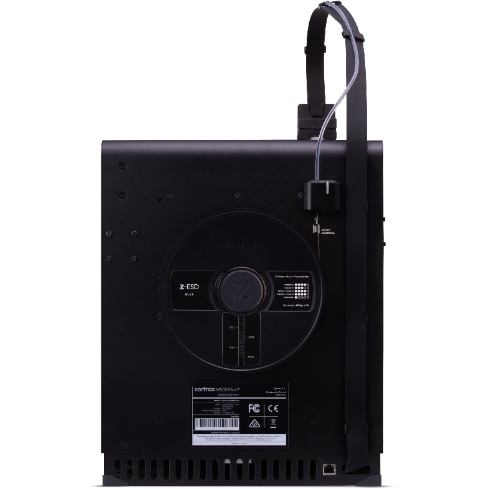

- Spool holder
- USB memory stick
Features

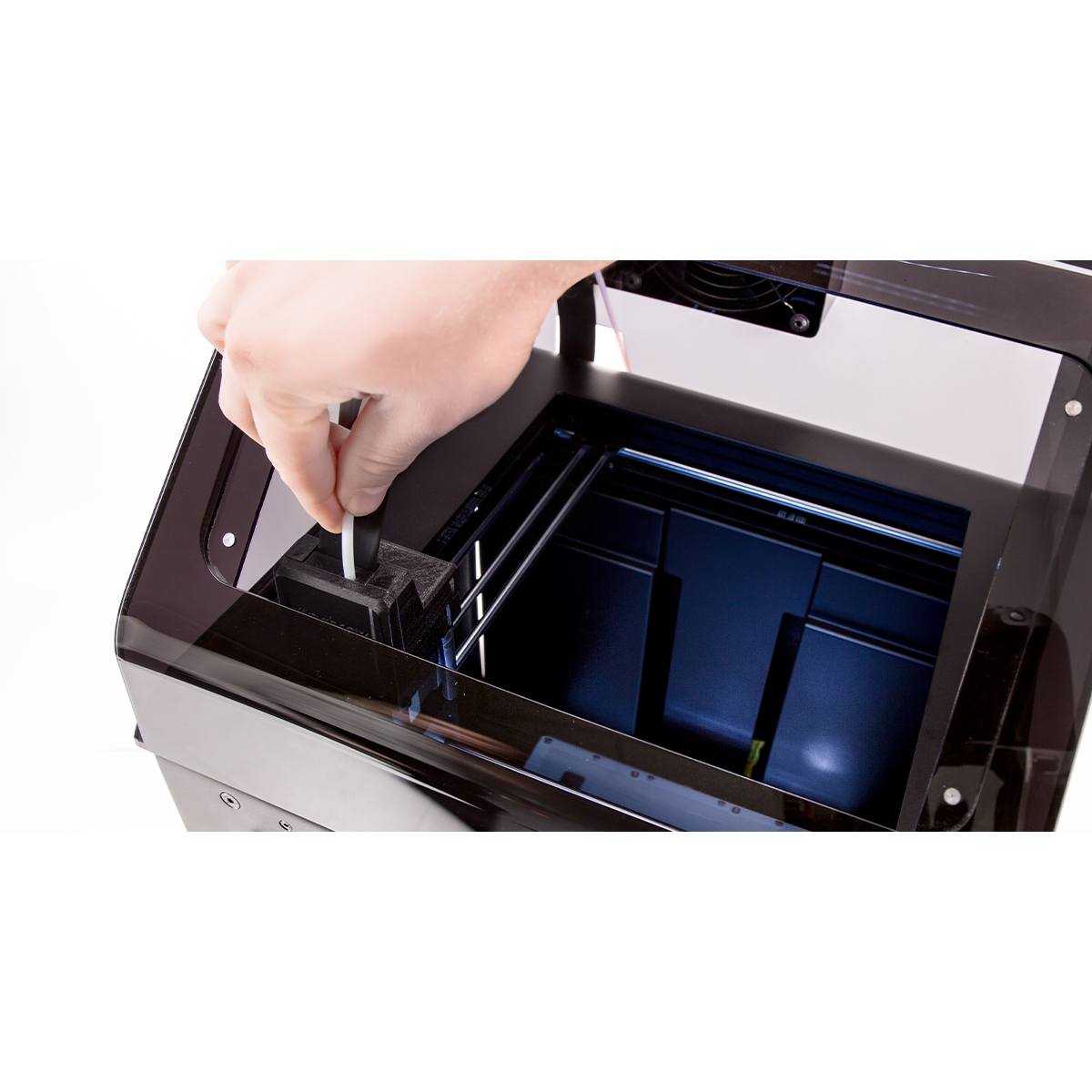

- Material end detection- 3D printing is paused when the material runs out.
- Advanced cooling system- Cooling system guarantees the highest efficiency.
- Built-in camera- 3D printing process can be monitored remotely.
- Wide range of filaments- Wide range of dedicated and third-party filaments is supported.
*Free One Year Manufacturer Warranty
