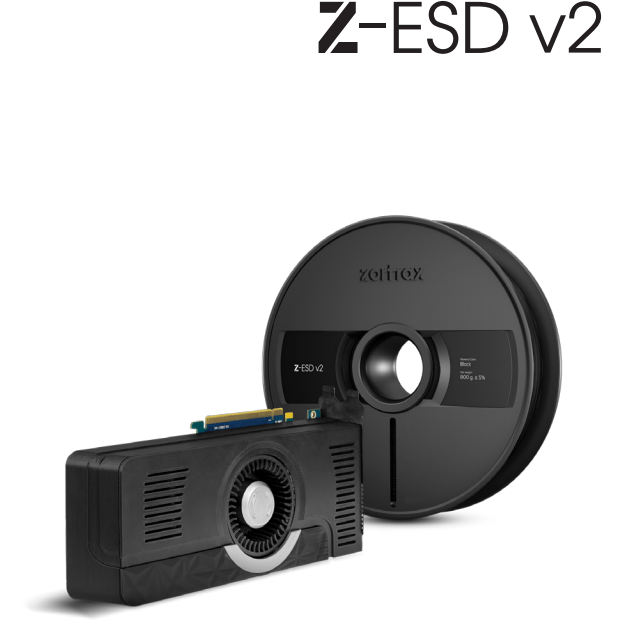

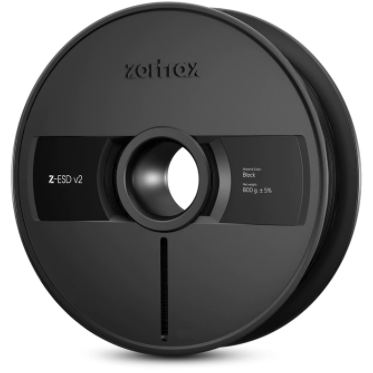

Zortrax Z-ESD V2 Filament
Zortrax Z-ESD V2 Filament
Zortrax Z-ESD V2 Filament
Zortrax Z-ESD V2 Filament

Zortrax Z-ESD V2 Filament

  • Vendor
    Zortrax
    Sale price
    $149.00
    Regular price
    Sold out
    Unit price
    per
    Get 5% OFF All xTool Diode Lasers & Bundles Use Code: CYBER5OFF | Ends:
    Shipping calculated at checkout.

    Availability:

    Estimated Arrival: Between Dec 05 and Dec 09. *ETA to USA Only

    Shipping & Returns: Free Shipping [Continental USA Only]. All The Time. On all orders.

    Why Buy From Paradigm3D

    Z-ESD* filament gives your models electrostatic discharge protection particularly useful in the electronic industry. Its surface resistivity ranging from 10^6 to 10^9 Ω/sq eliminates the risk of damaging sensitive electronic devices. The filament protects your models against most acids, alcohols, and weak alkalies. Z-ESD is perfect for casings of delicate electronic and mechanical components working in an adverse industrial environment.

    *Compatible with third-party printers and slicing software, manually setting print temperature recommended.

    *Two Types of Z-ESD material are included in the range of our materials - Z-ESD and Z-ESD v2. Both have the same properties, however, as their printing settings differ - two profiles, Z-ESD and Z-ESD v2 are available in Z-SUITE. The spools of both Z-ESD types are tabbed accordingly, and we recommend making sure which one you're using by checking the material sticker and choosing the right printing profile. In case you're printing a .zcodex previously sliced for Z-ESD, slicing them again with the Z-ESD v2 profile is necessary for printing with the v2 material type.

    Dedicated for: Zortrax Inventure, Zortrax M200, Zortrax M200 Plus.

    • industrial parts and tools
    • end-use parts

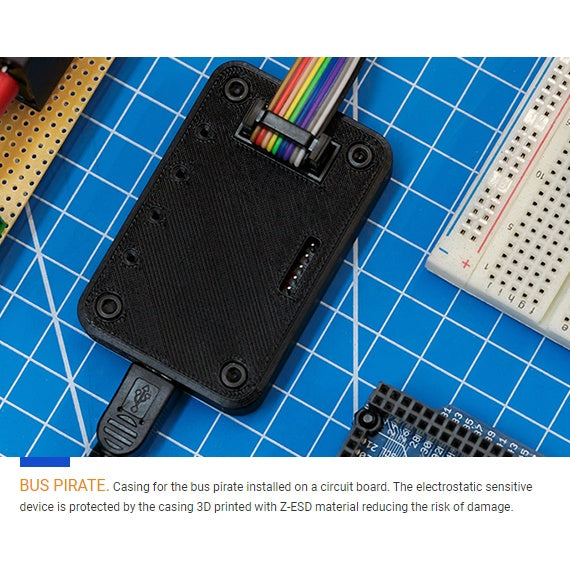

    • casings for electronic devices
    • parts required to be resistant to chemicals and electrostatic discharge
    Specifications
    Weight: 0.8kg (1.76 lbs)
    Diameter:1.75mm
    Tensile Strength: 32.88 MPa, (4770 psi) [ISO 527:1998]
    Glass Transition Temperature 80 - 90° C (176 - 194° F) [DSC]
    Available Colors: Black



                                   Filament Specifications

    Dedicated 3D Printers Filament Weight Extrusion

    Zortrax M200,

    Zortrax M200 Plus

     .8kg (1.76lbs) Single

    Zortrax Inventure

     .8kg (1.76lbs) Single / Dual with Z-SUPPORT PREMIUM

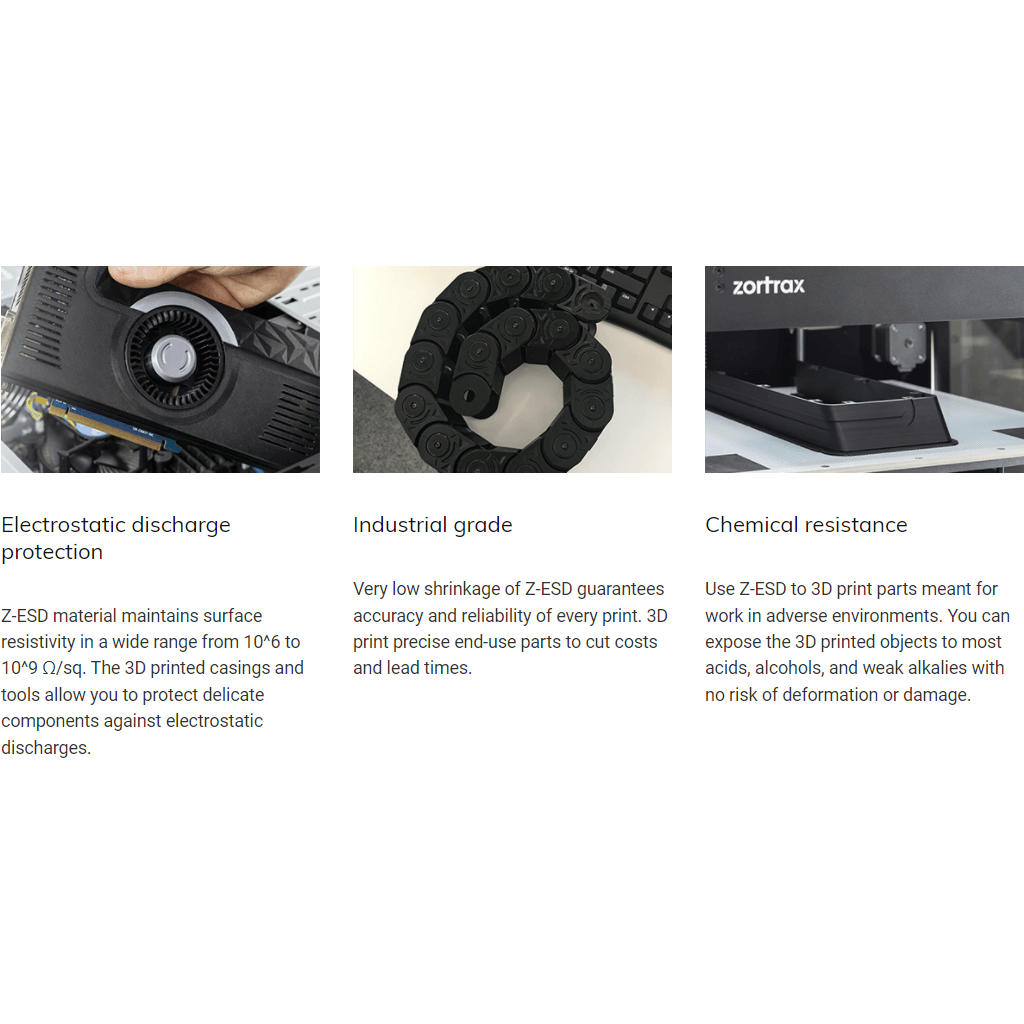

    Features

    • Electrostatic discharge protection-Z-ESD material maintains surface resistivity in a wide range from 10^6 to 10^9 Ω/sq. The 3D printed casings and tools allow you to protect delicate components against electrostatic discharges.

    • Industrial grade-Very low shrinkage of Z-ESD guarantees accuracy and reliability of every print. 3D print precise end-use parts to cut costs and lead times.

    • Chemical resistance-Use Z-ESD to 3D print parts meant for work in adverse environments. You can expose the 3D printed objects to most acids, alcohols, and weak alkalies with no risk of deformation or damage.
